US-150 McClugage Bridge Replacement
Location
Peoria, IL
Project Facts
84 EA Drilled Shafts
48 EA - 6ft dia. Drilled Shafts with drilling depths ranging from 60ft-100ft long with 5.5ft to 7.5ft rock sockets
36 EA - 8ft dia. Drilled Shafts with drilling depths ranging from 104ft-112ft long with 10ft to 15ft rock sockets
Project Scope

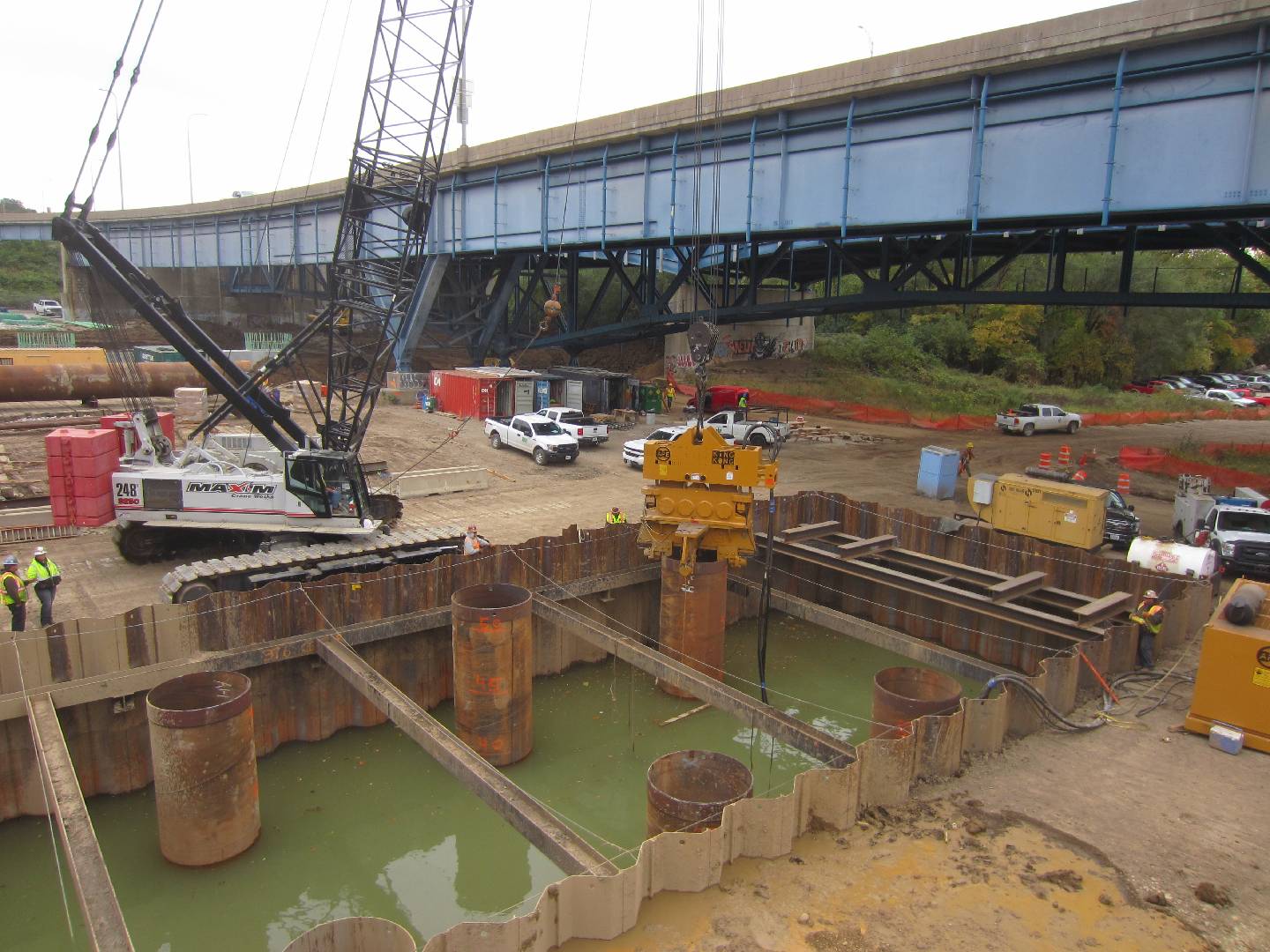

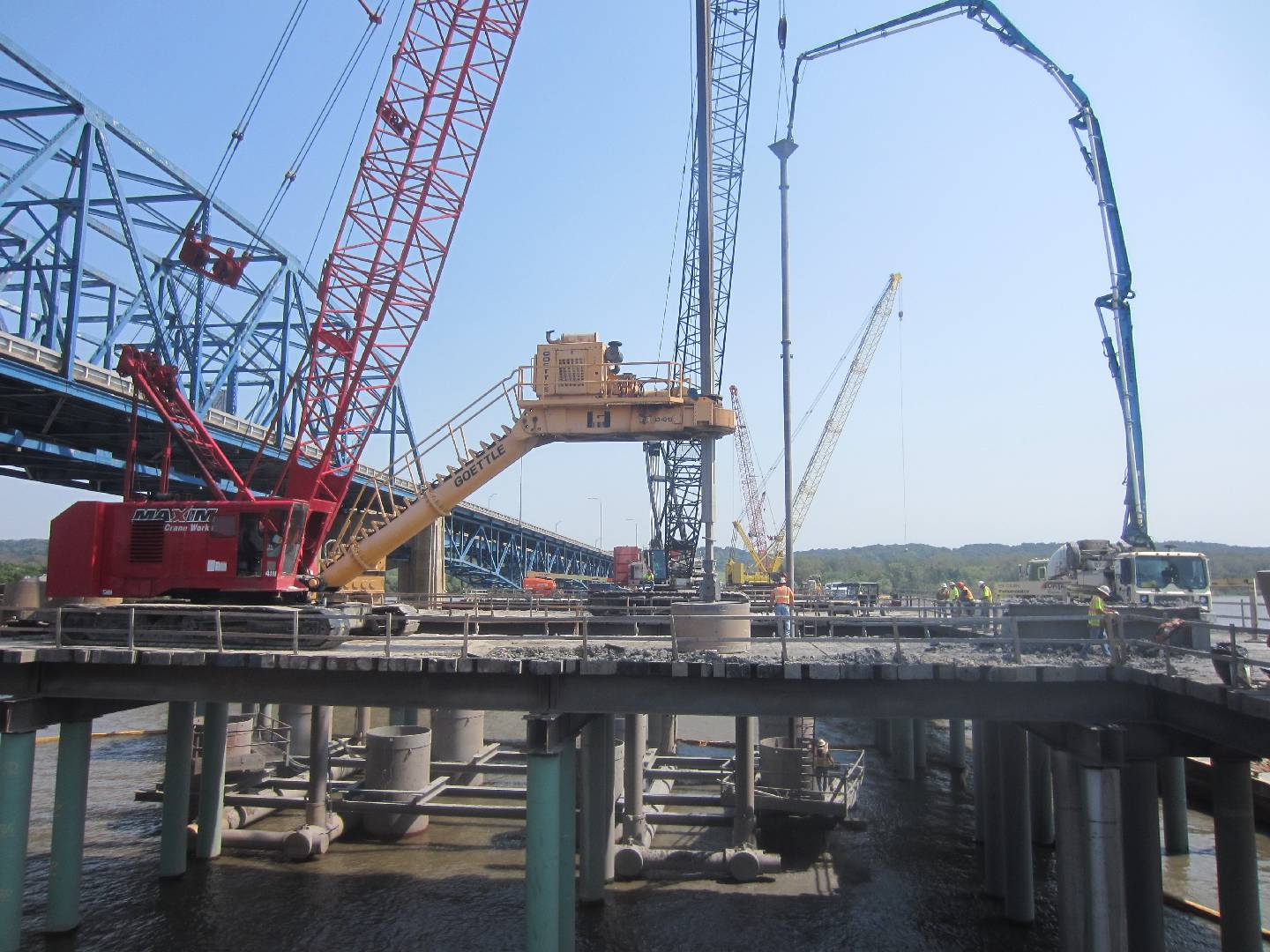

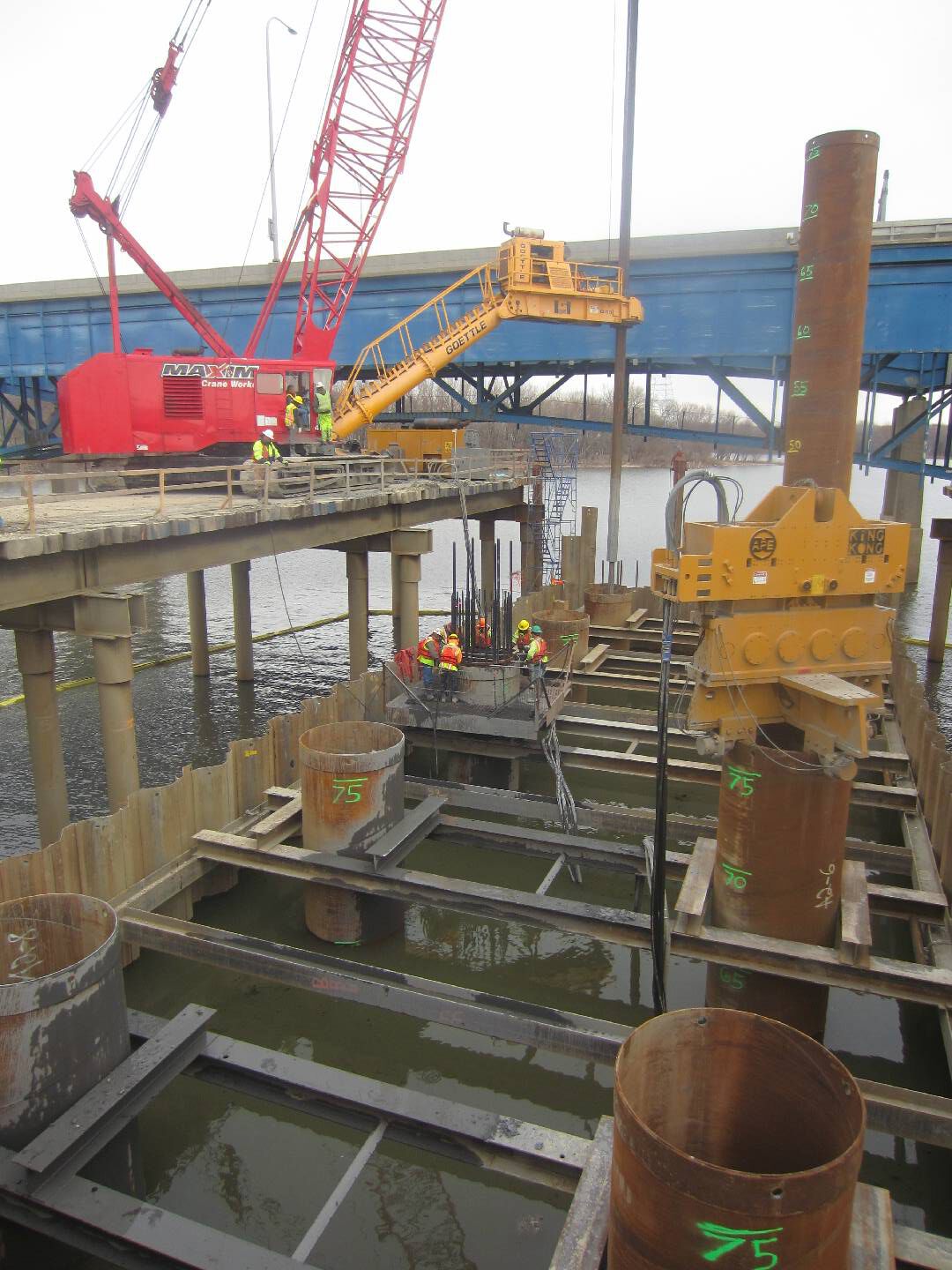

Installation of drilled shafts and permanent casing into underlying 15,000psi shale. 72 EA drilled shafts installed over Illinois River via. temporary trestle.
Completed For
IDOT
