Irishtown Bend Stabilization Project
Location
Cleveland, OH
Project Facts

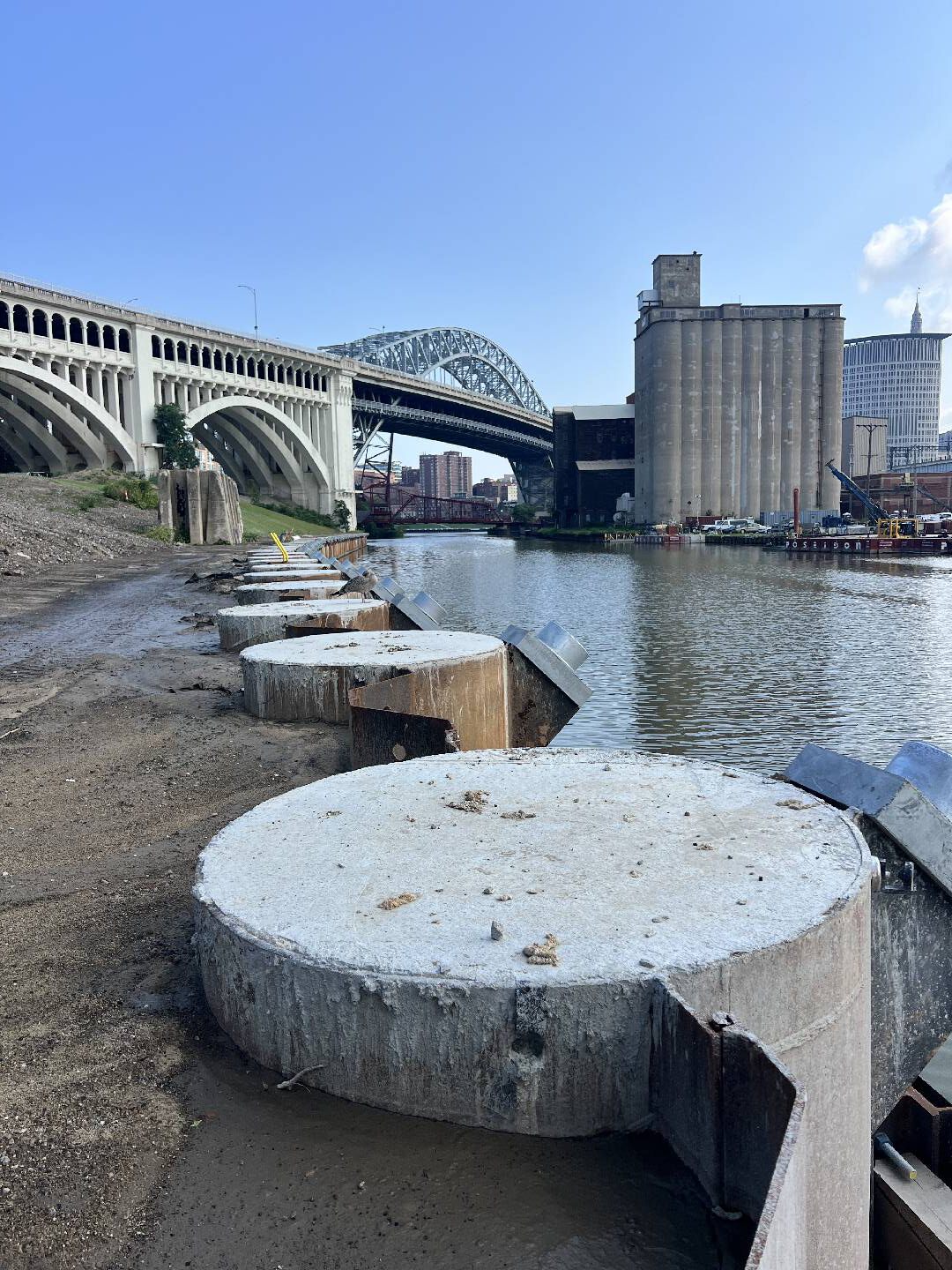

136,000 SF Anchored Combi-Wall Bulkhead

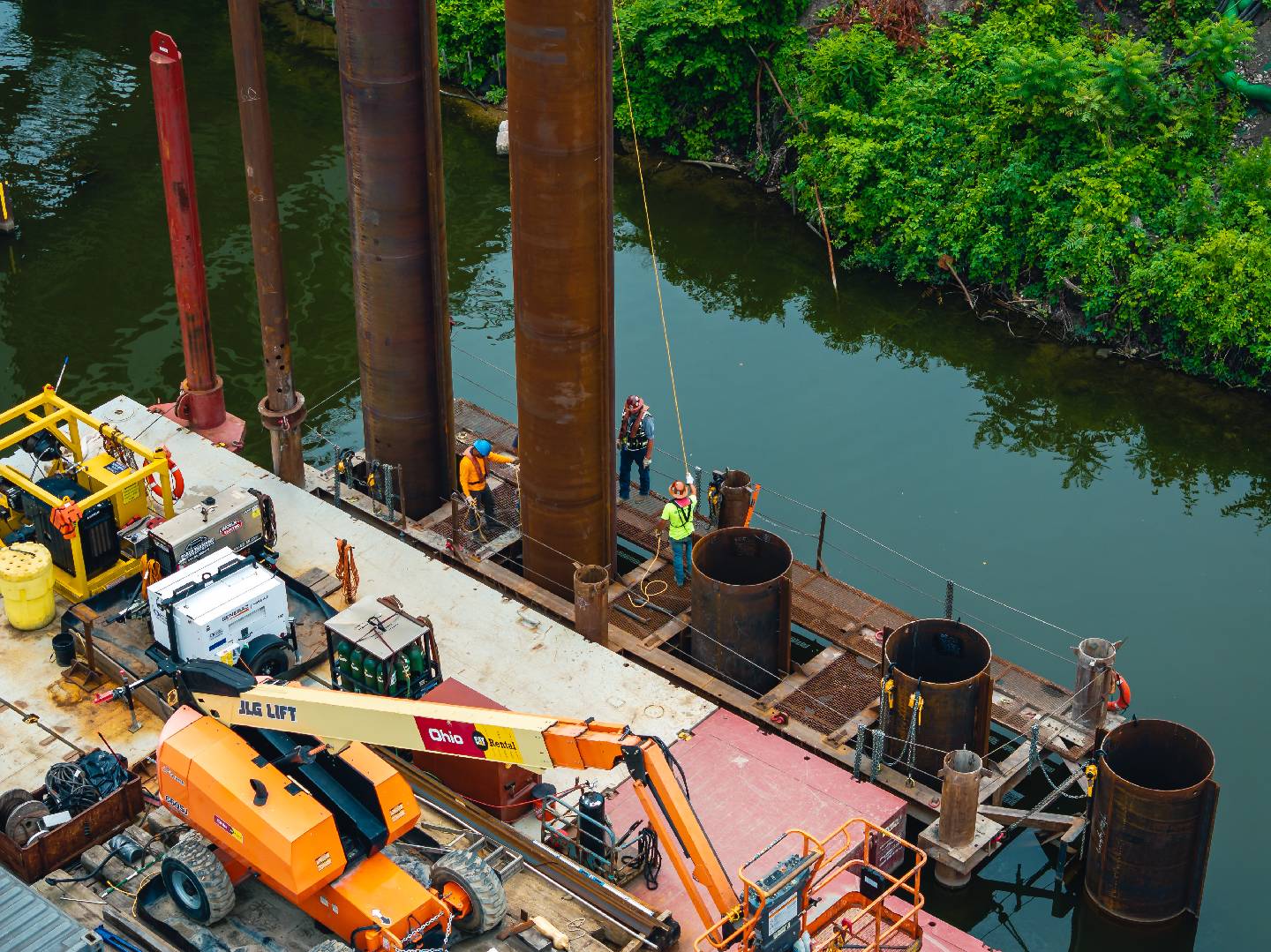

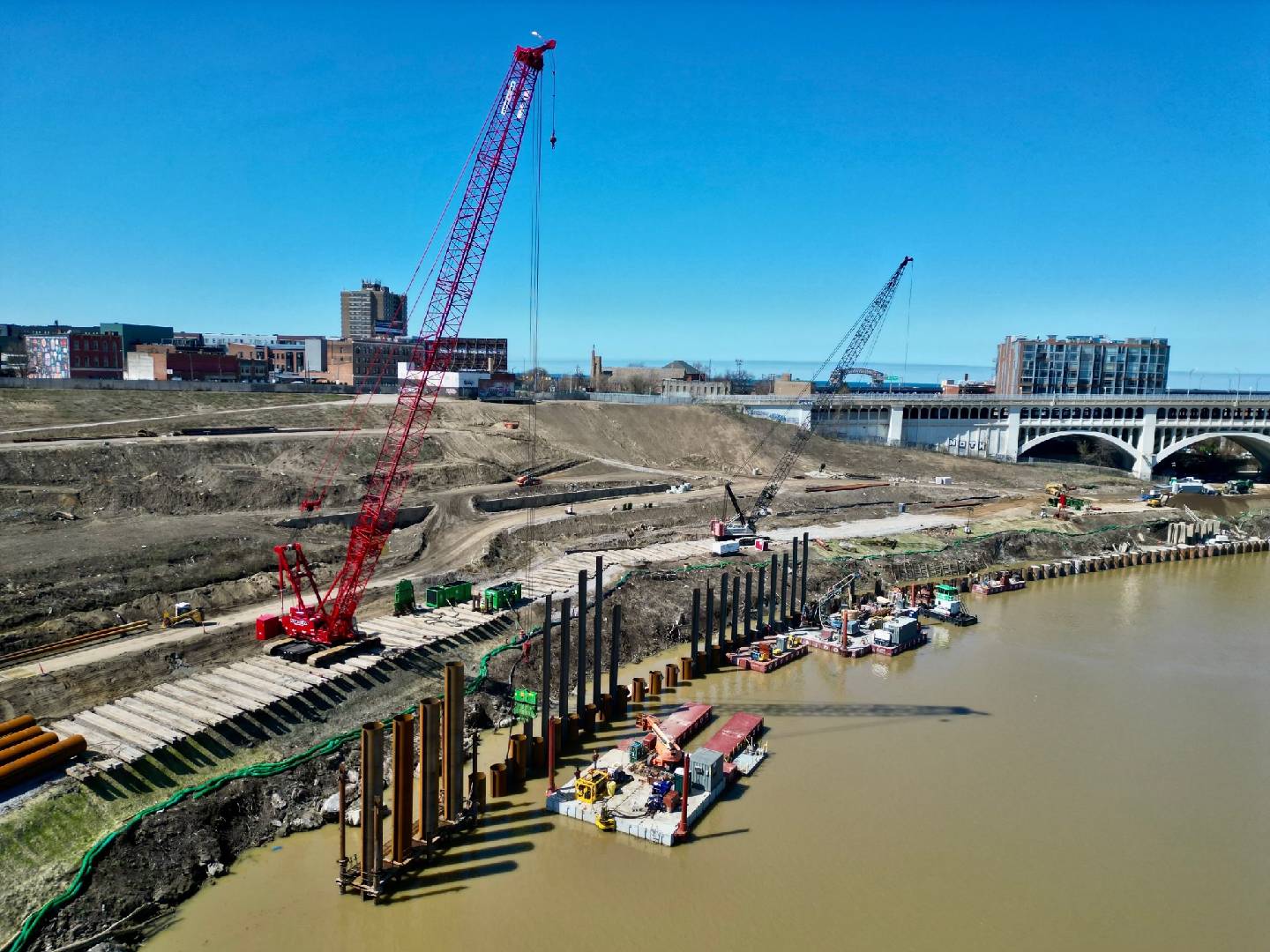

203 EA - Pipe Piles (PAZ-54 & PAZ-60) up to 69ft in length
202 EA - Sheet Piles (NZ-14)

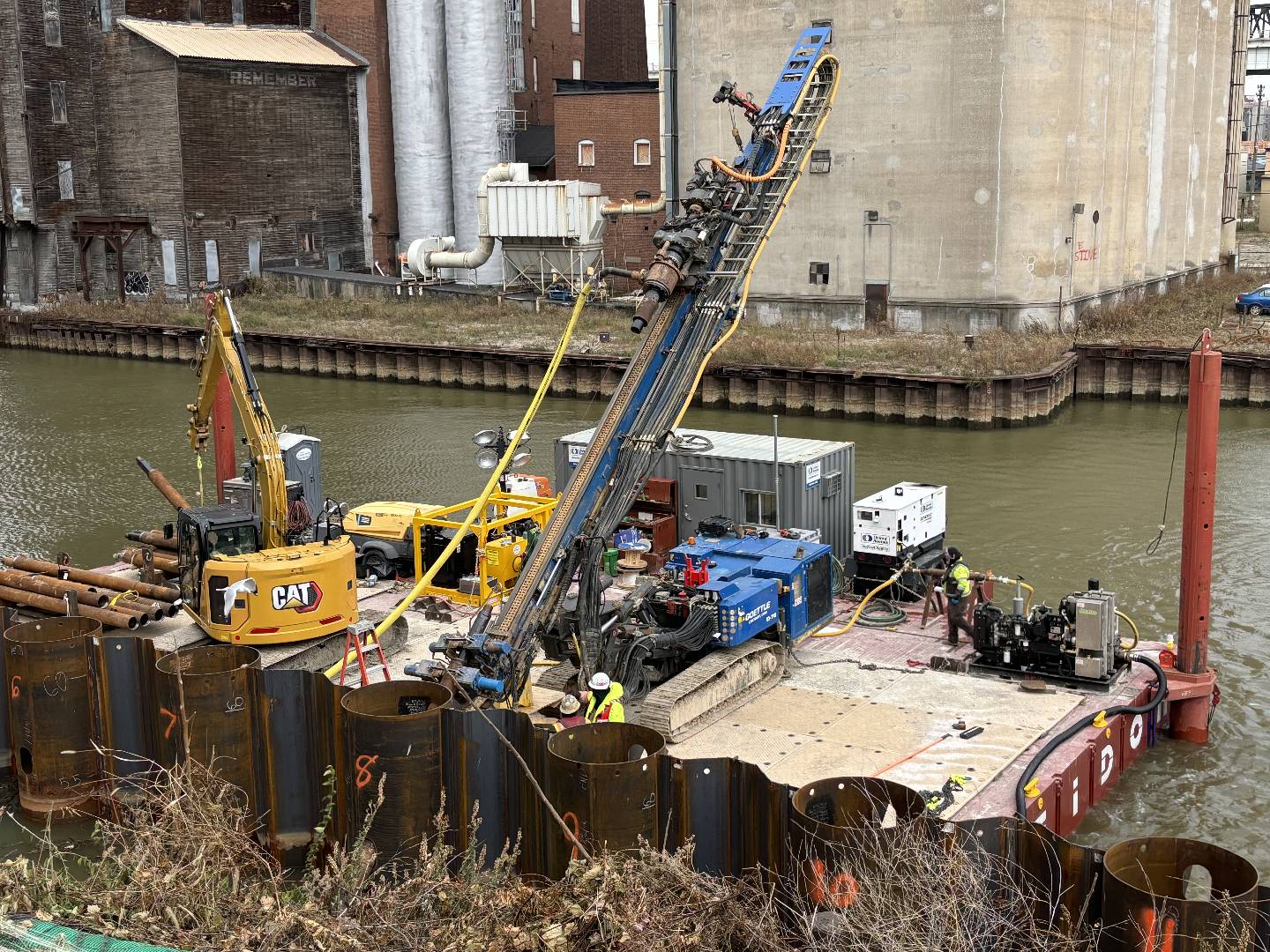

203 EA - Tieback Anchors (12, 17 & 26-strand) up to 220ft in length
2,000 LFT of Walers

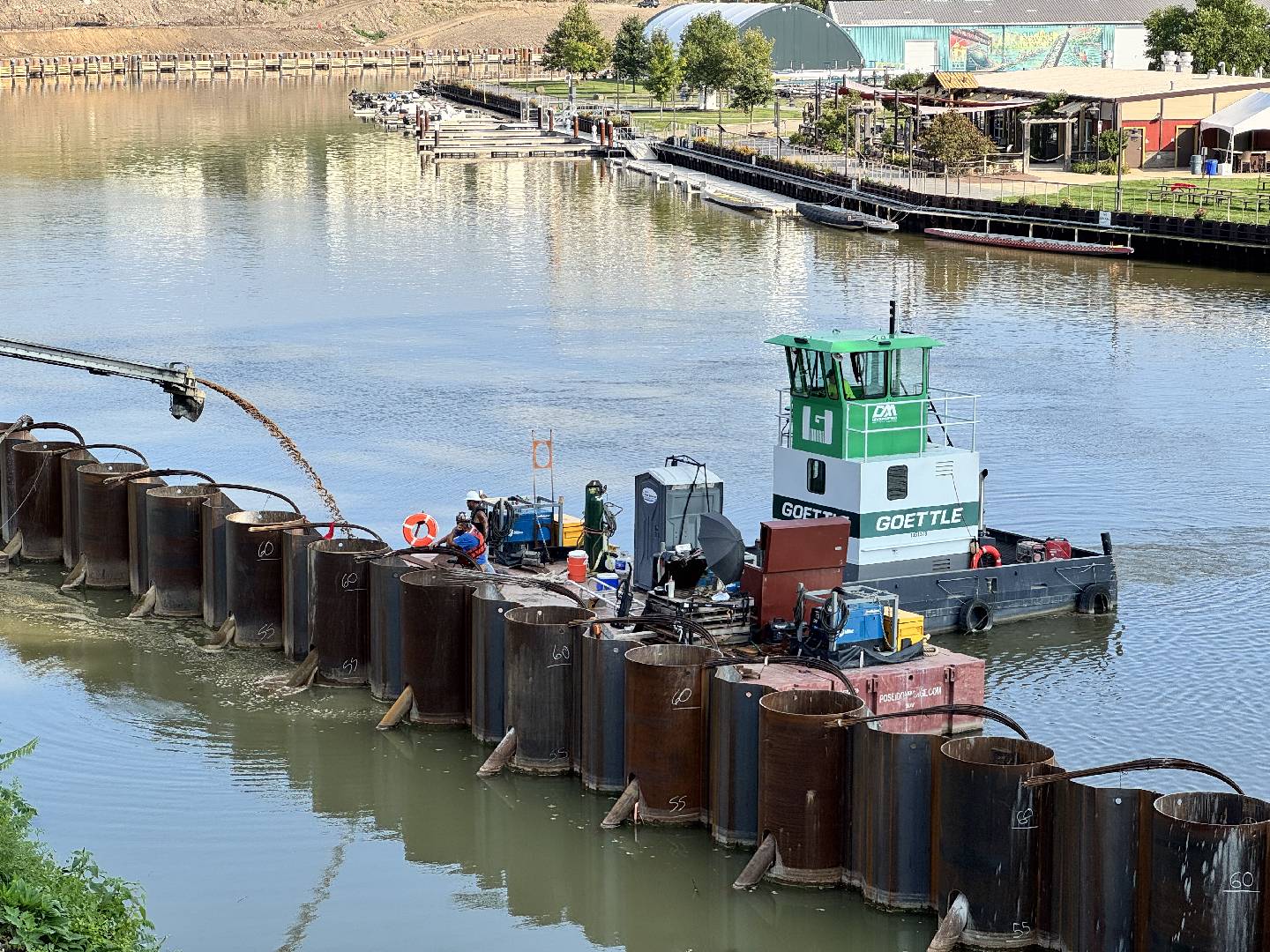

30,000 tons of stone backfill
107,000 CYDS of excavated material
Project Scope

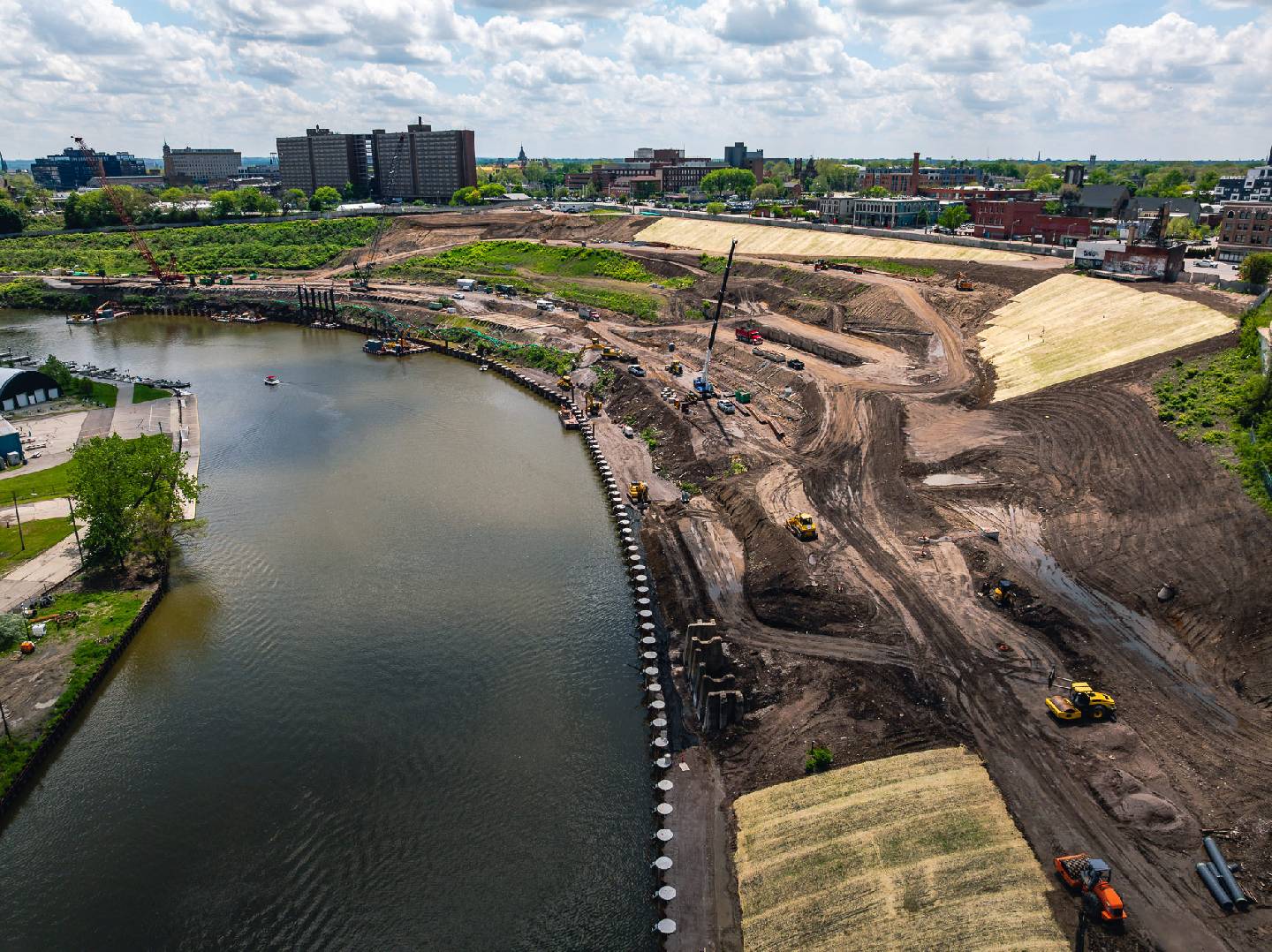

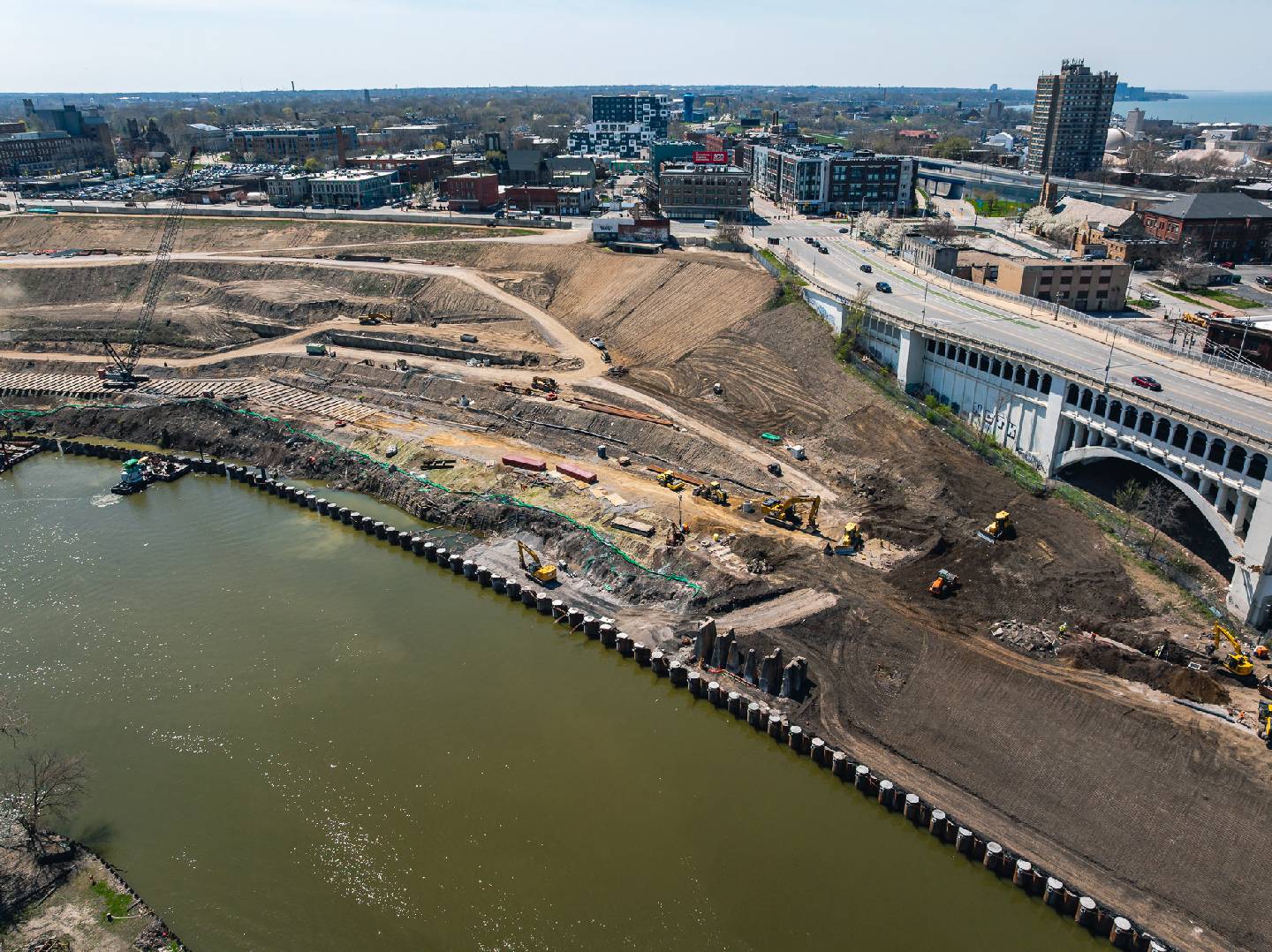

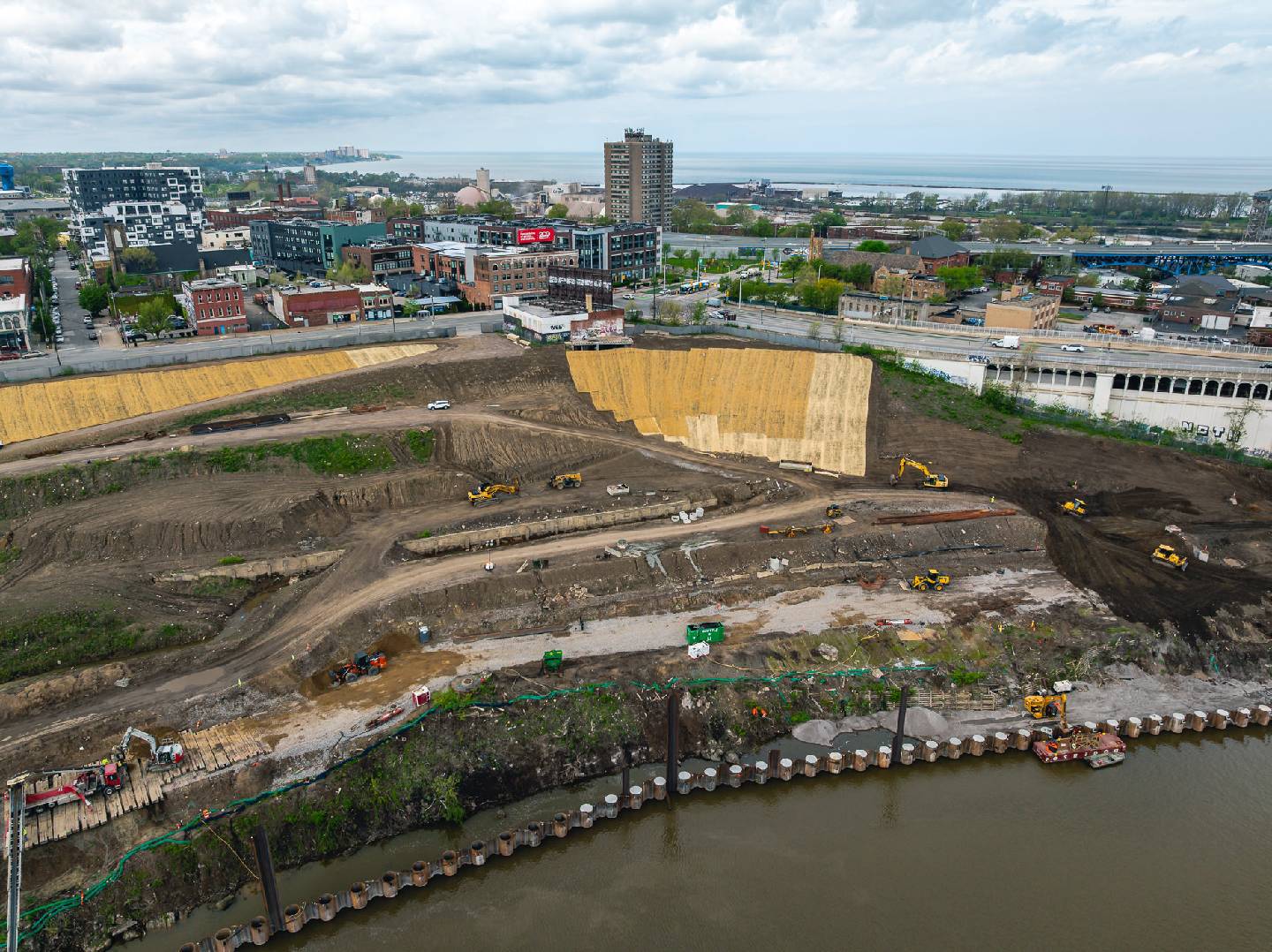

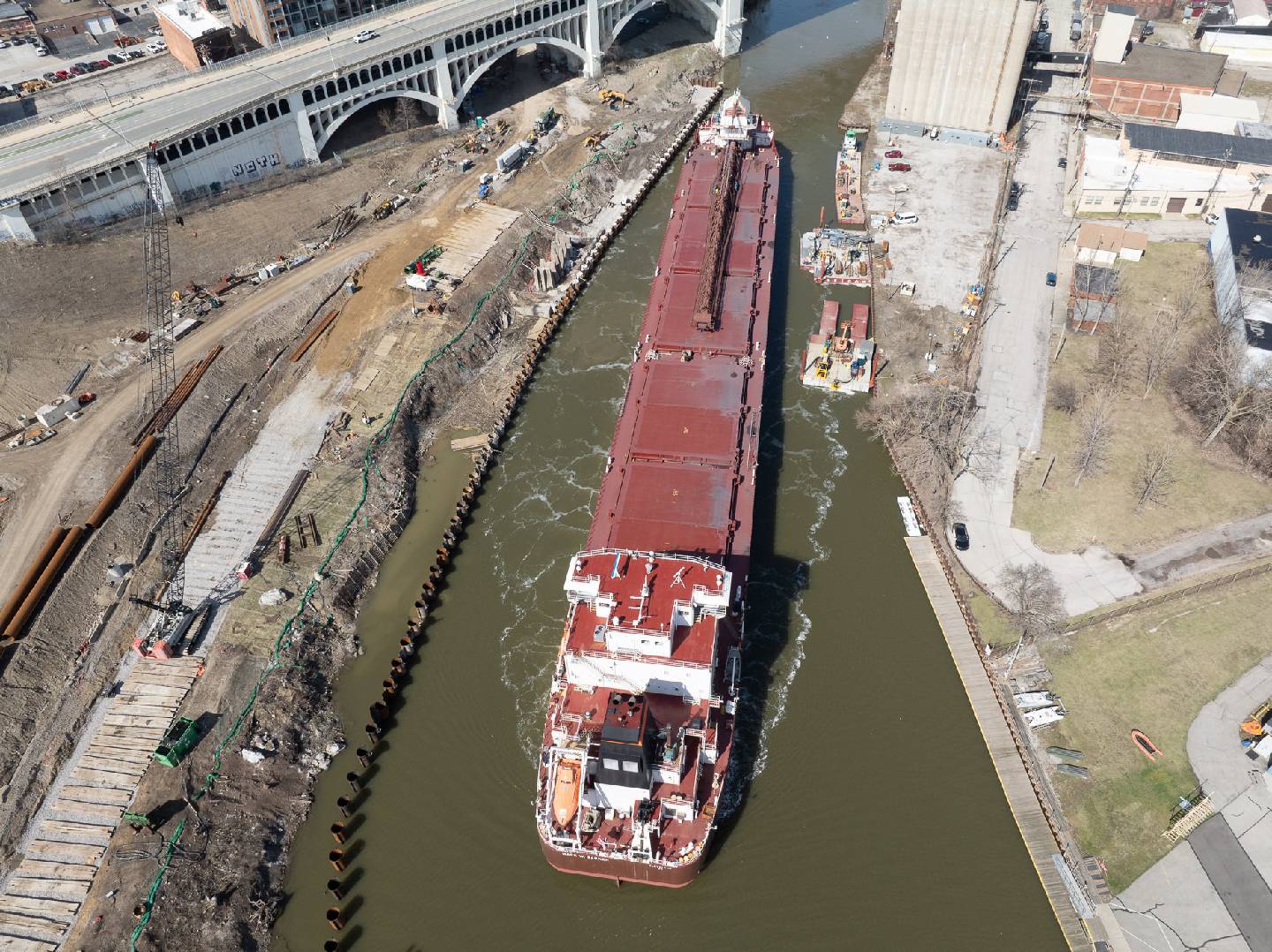

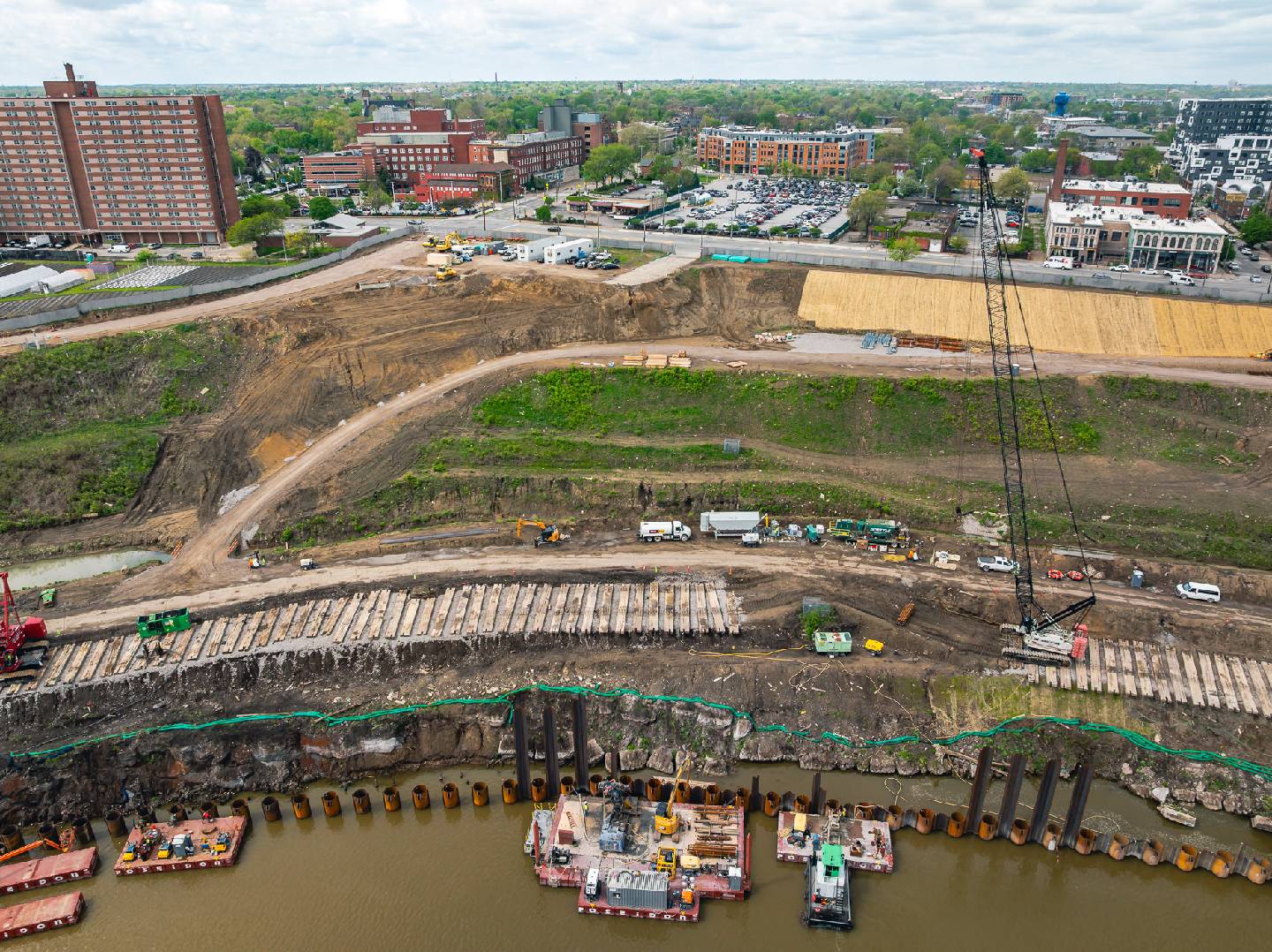

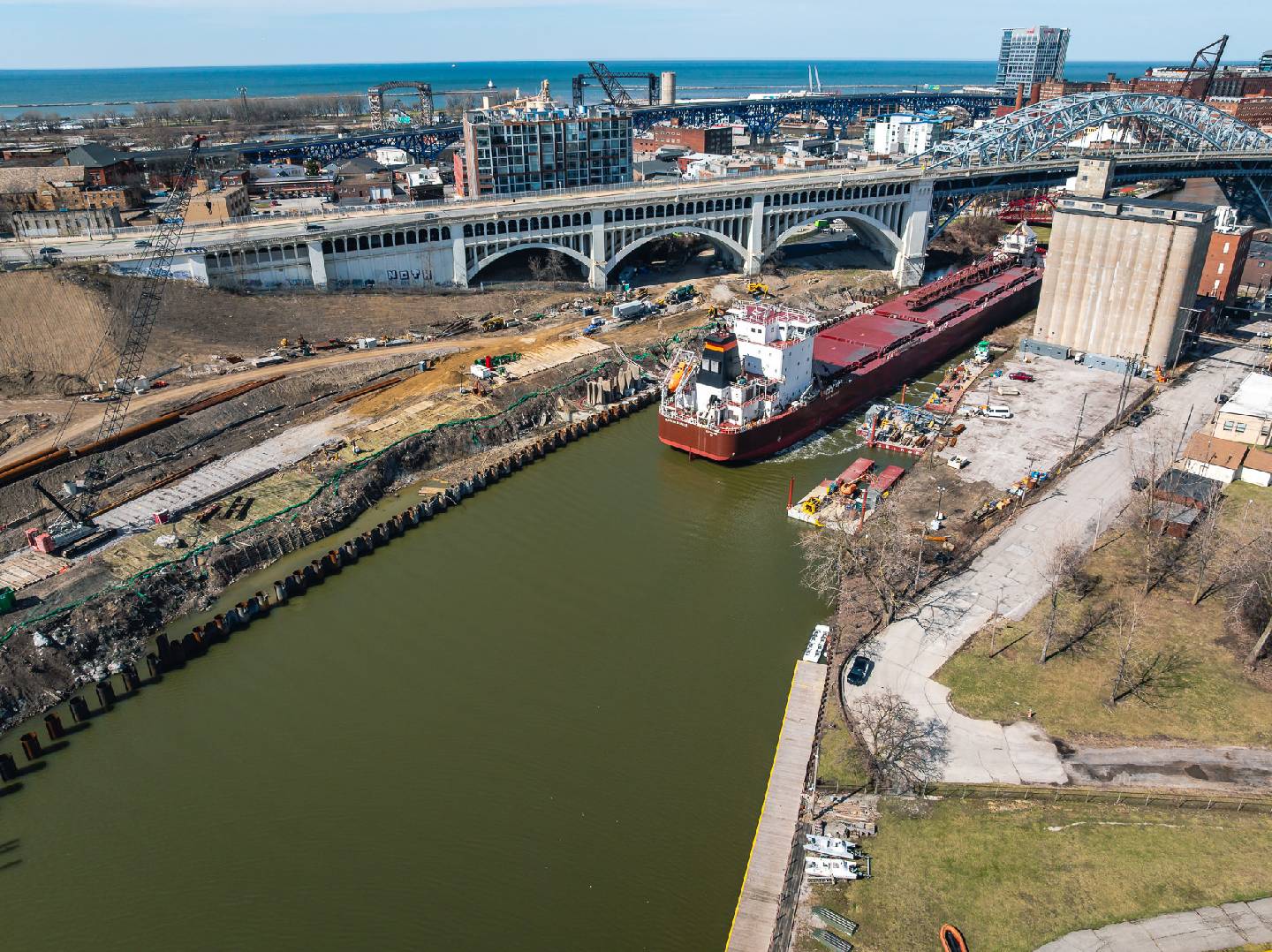

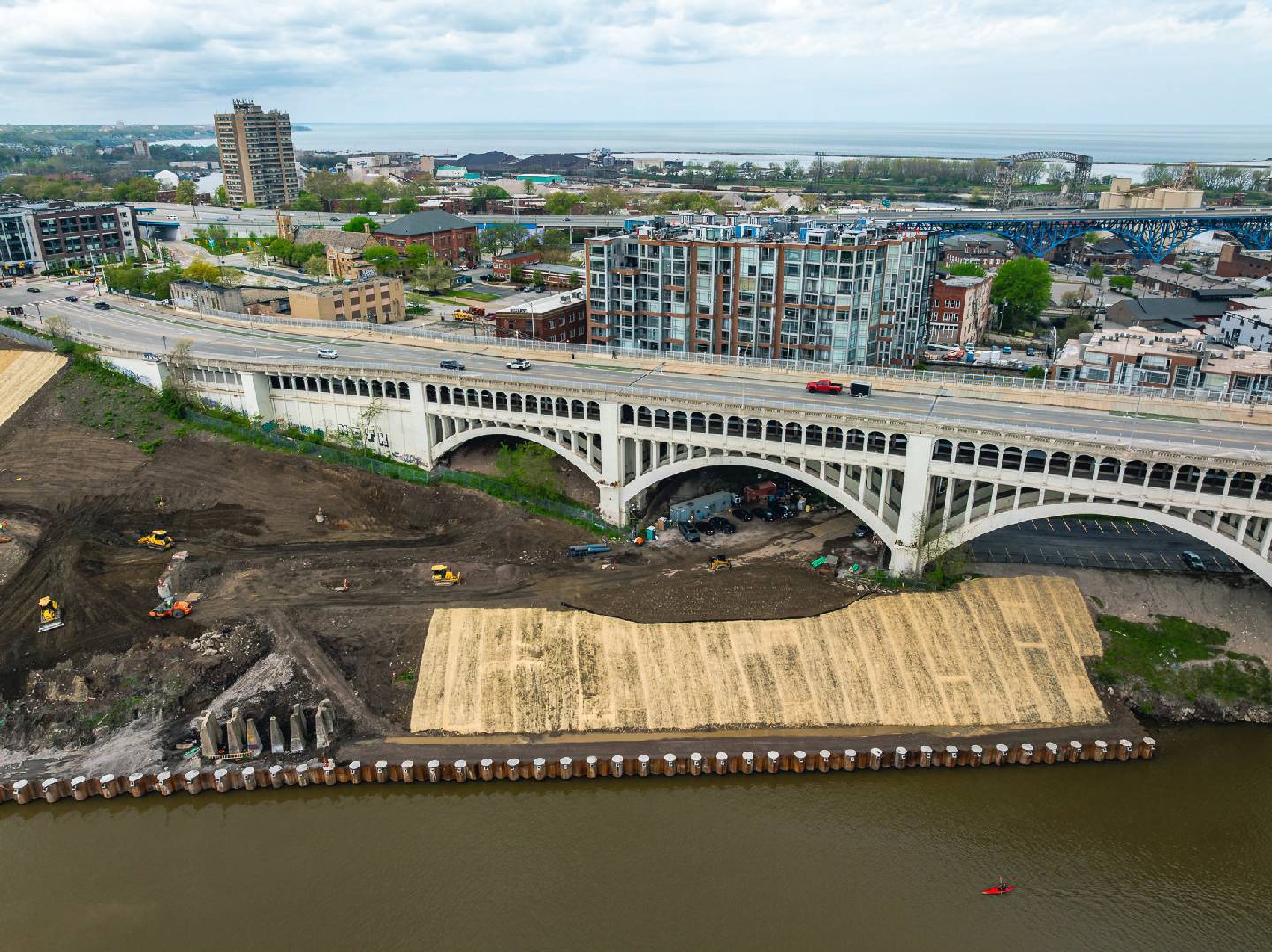

Furnish and install combi-wall bulkhead for stabilization of a massive hillside slope failure to protect the shipping channel along the Cuyahoga River and create public space. Goettle acted as the Prime Contractor.
Completed For
Cleveland-Cuyahoga County Port Authority
