Chicago Locks

Location

Chicago, IL

Project Facts

40EA - 9-5/8-in Ø 360 kip Micropiles at 126lft in length

2 EA - verification load tests (tension)

2 EA - proof tests performed within existing lock with custom built load testing frame

Project Scope

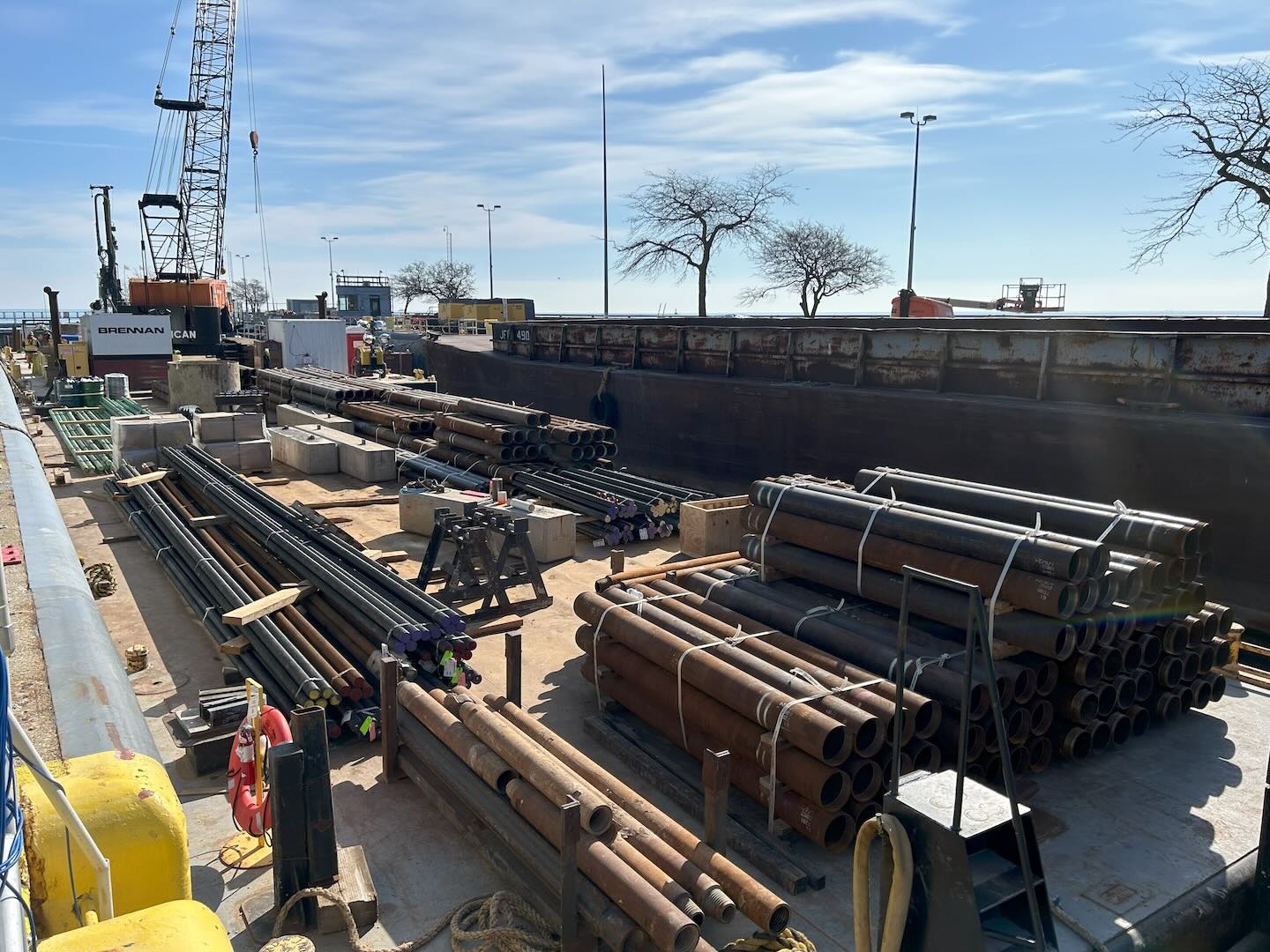

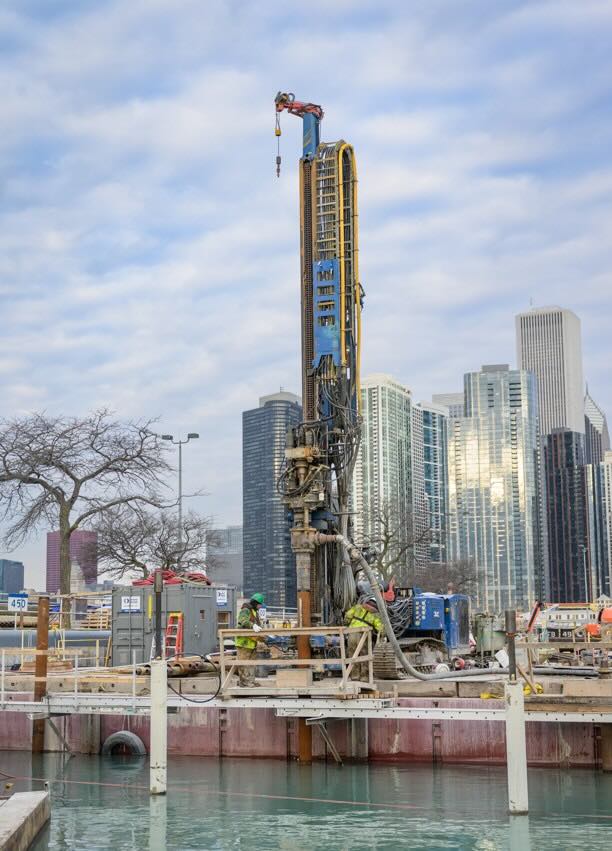

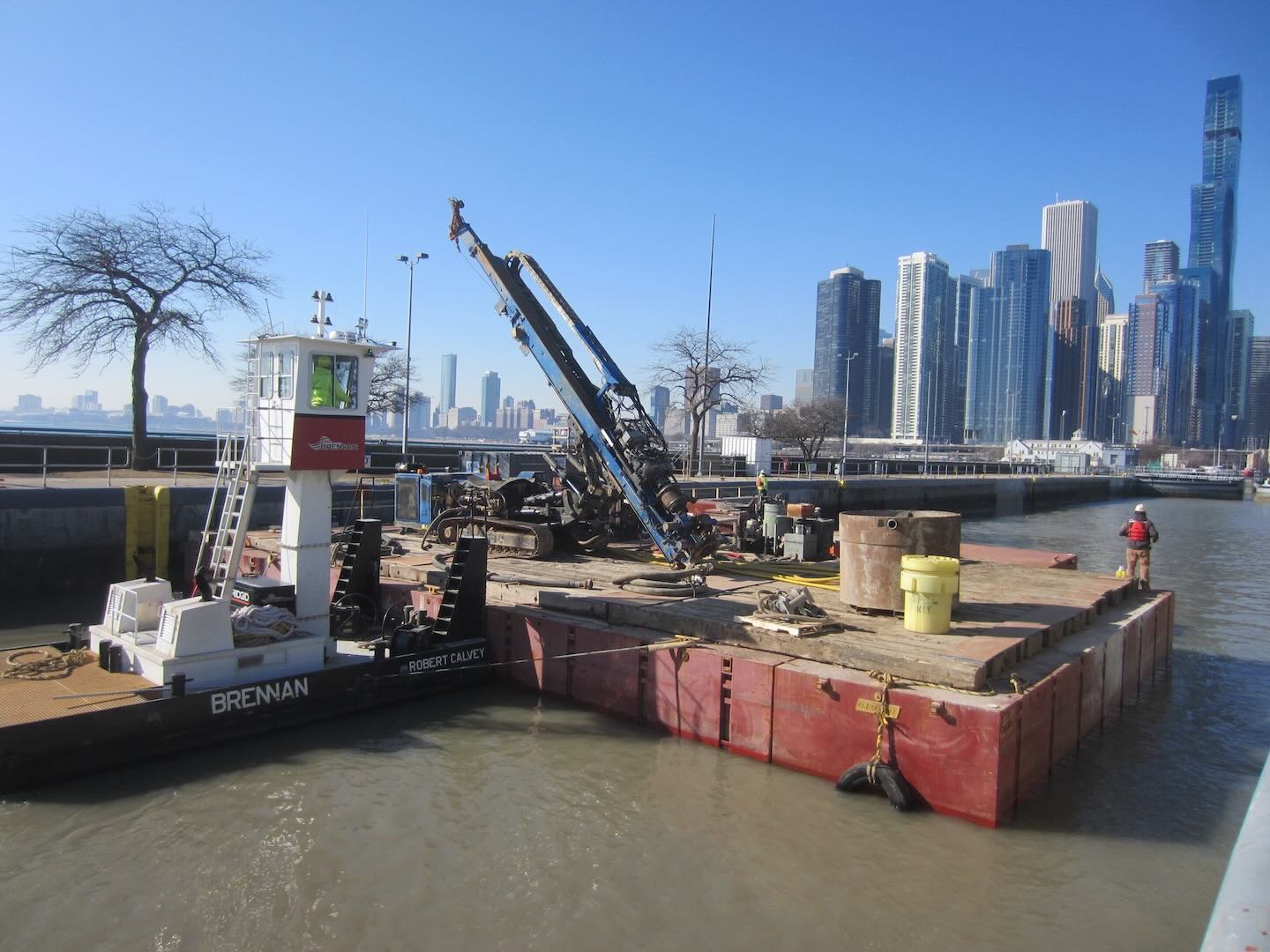

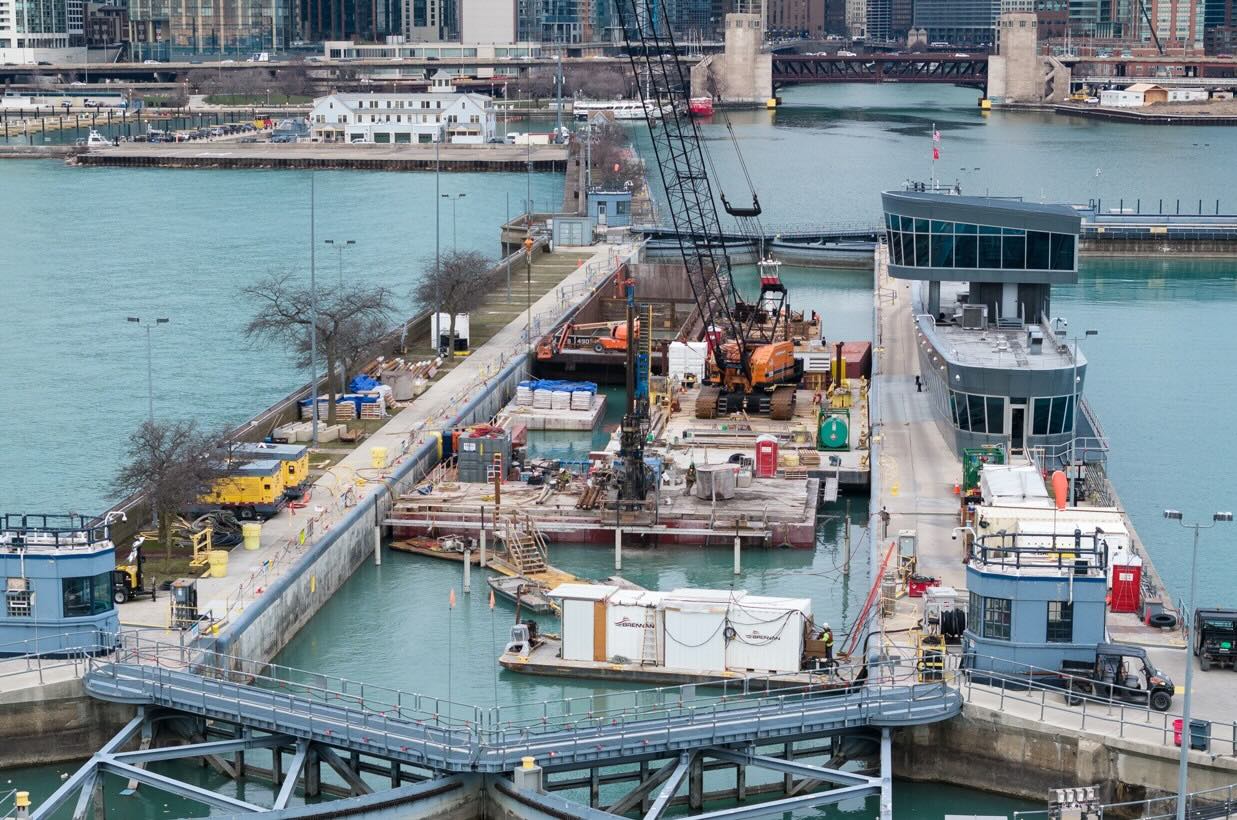

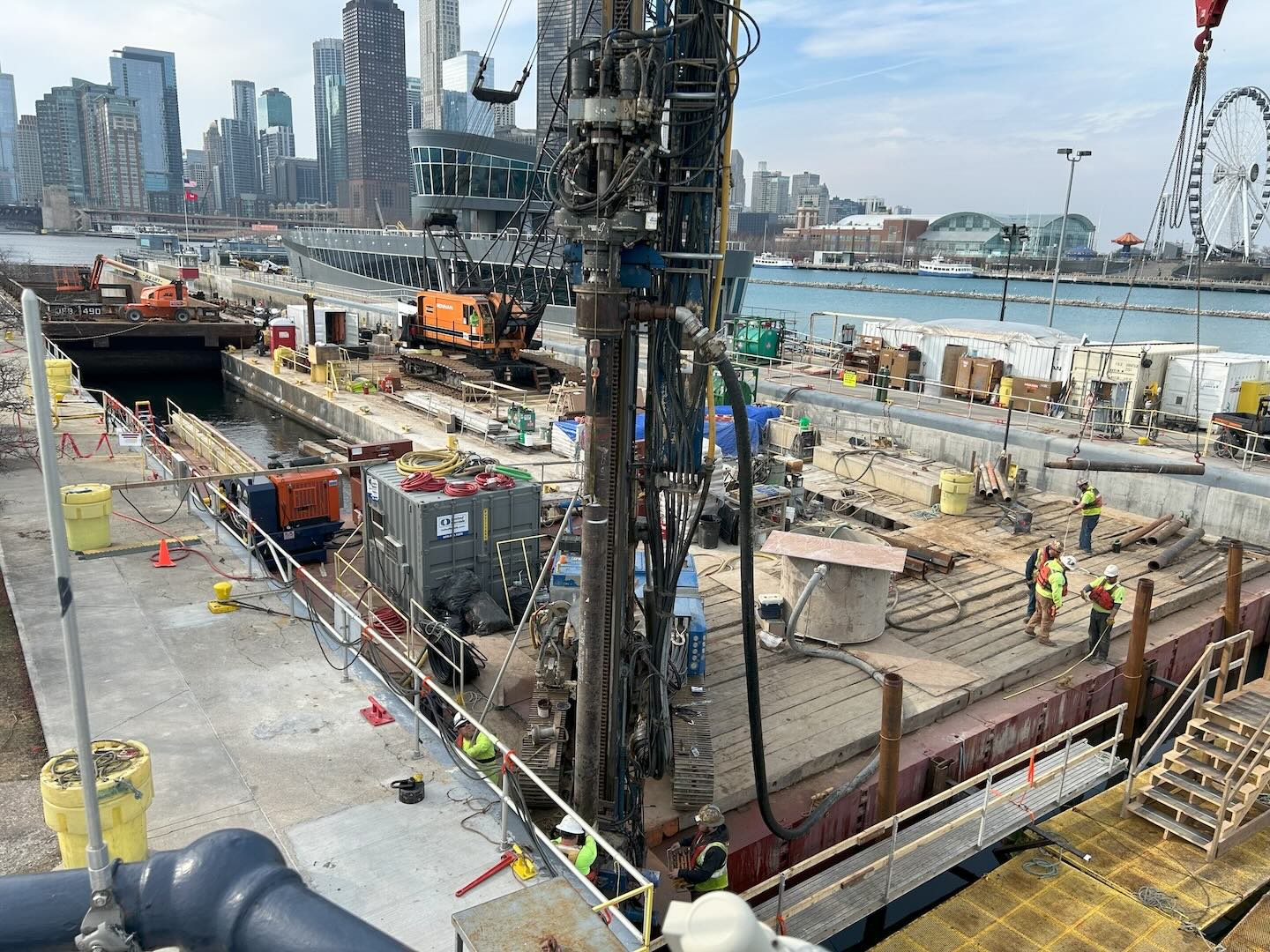

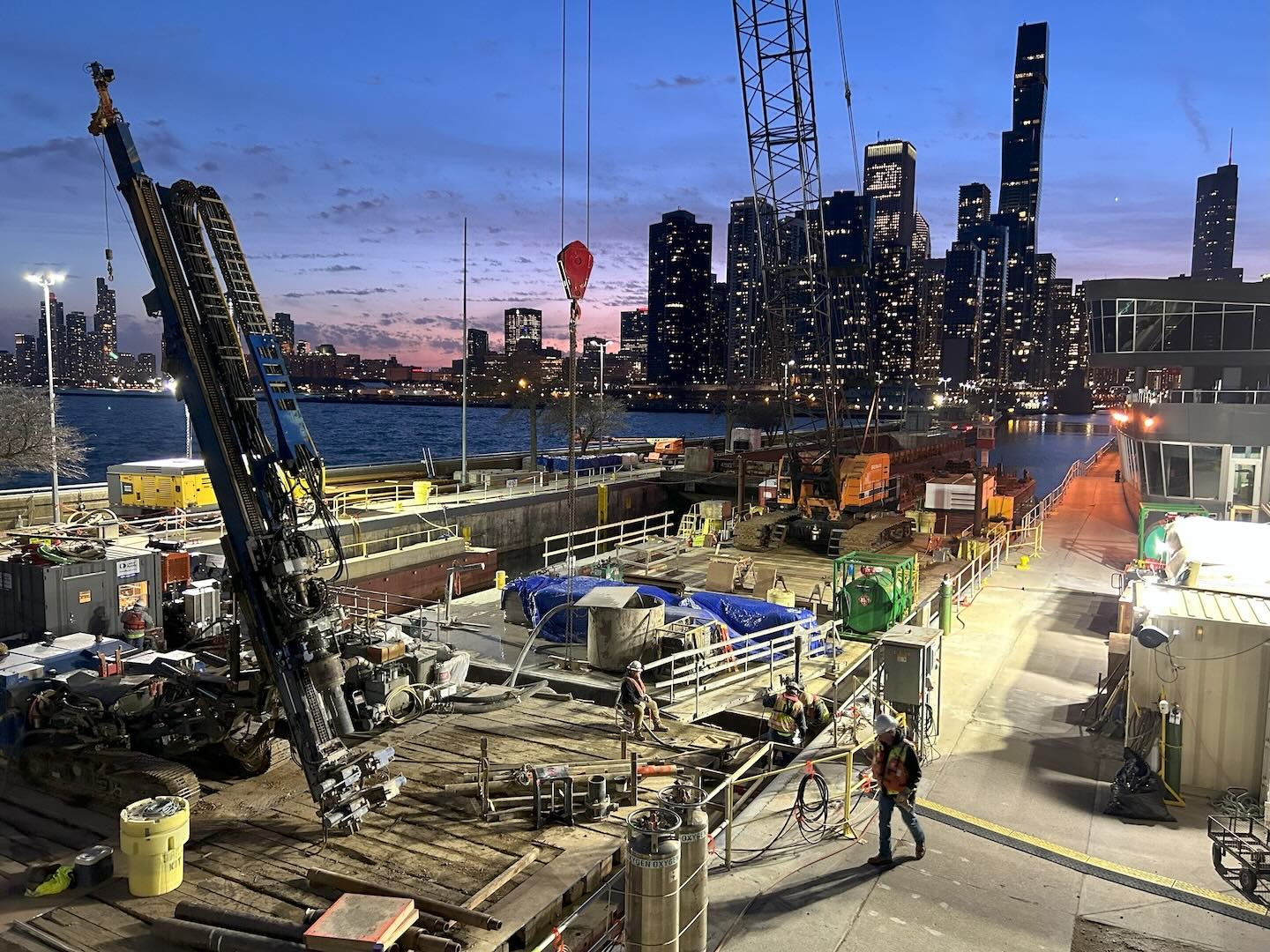

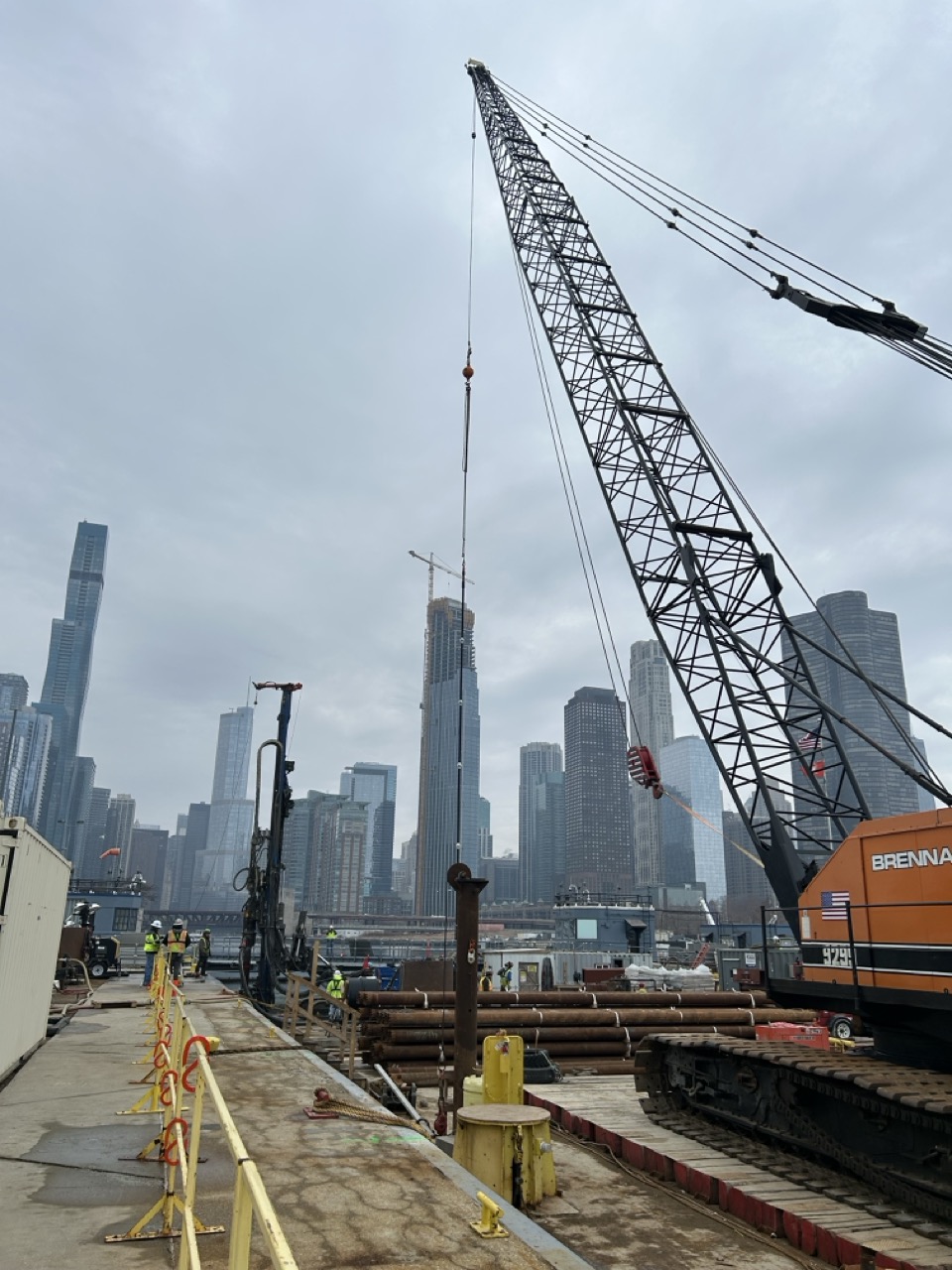

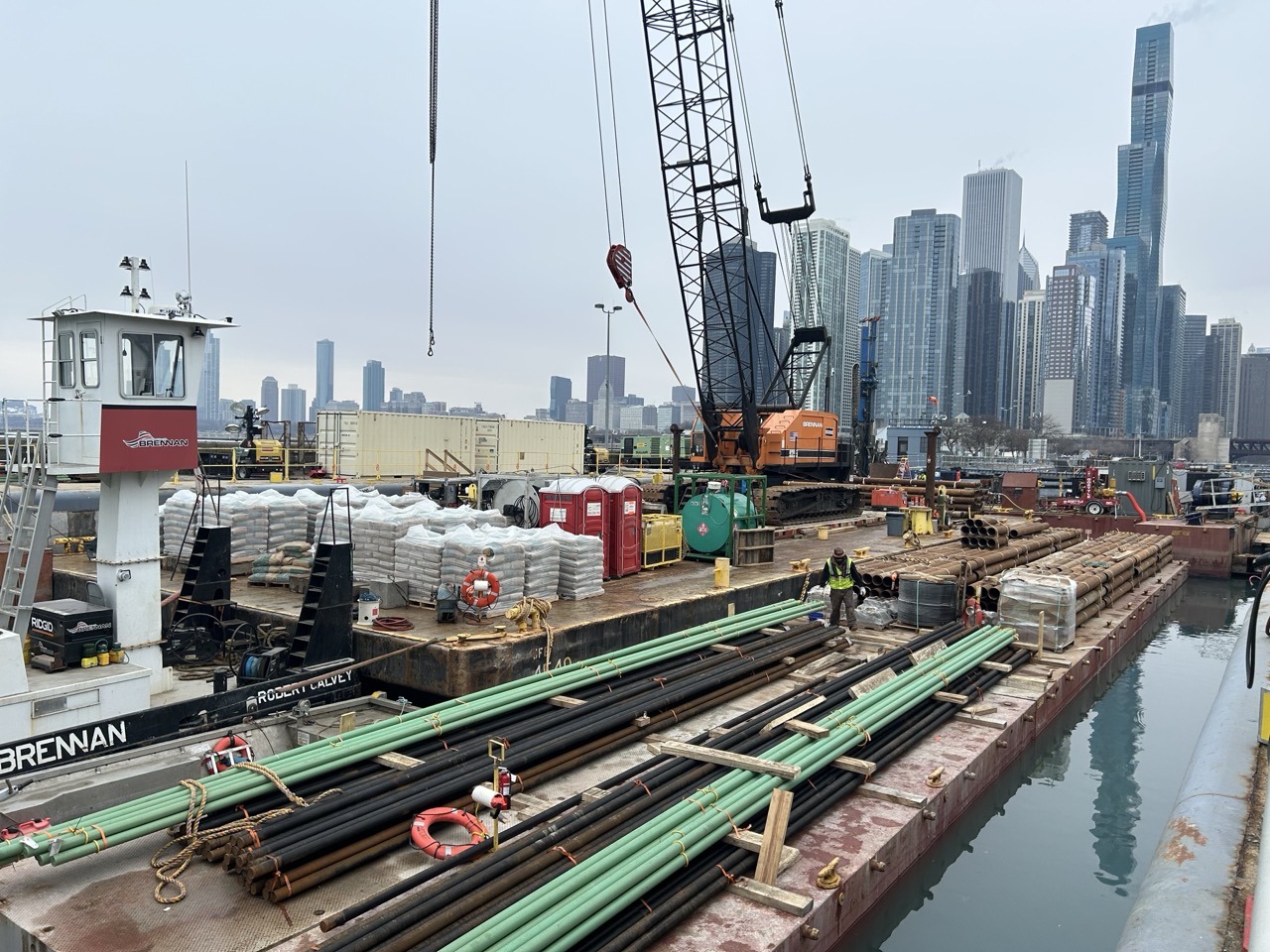

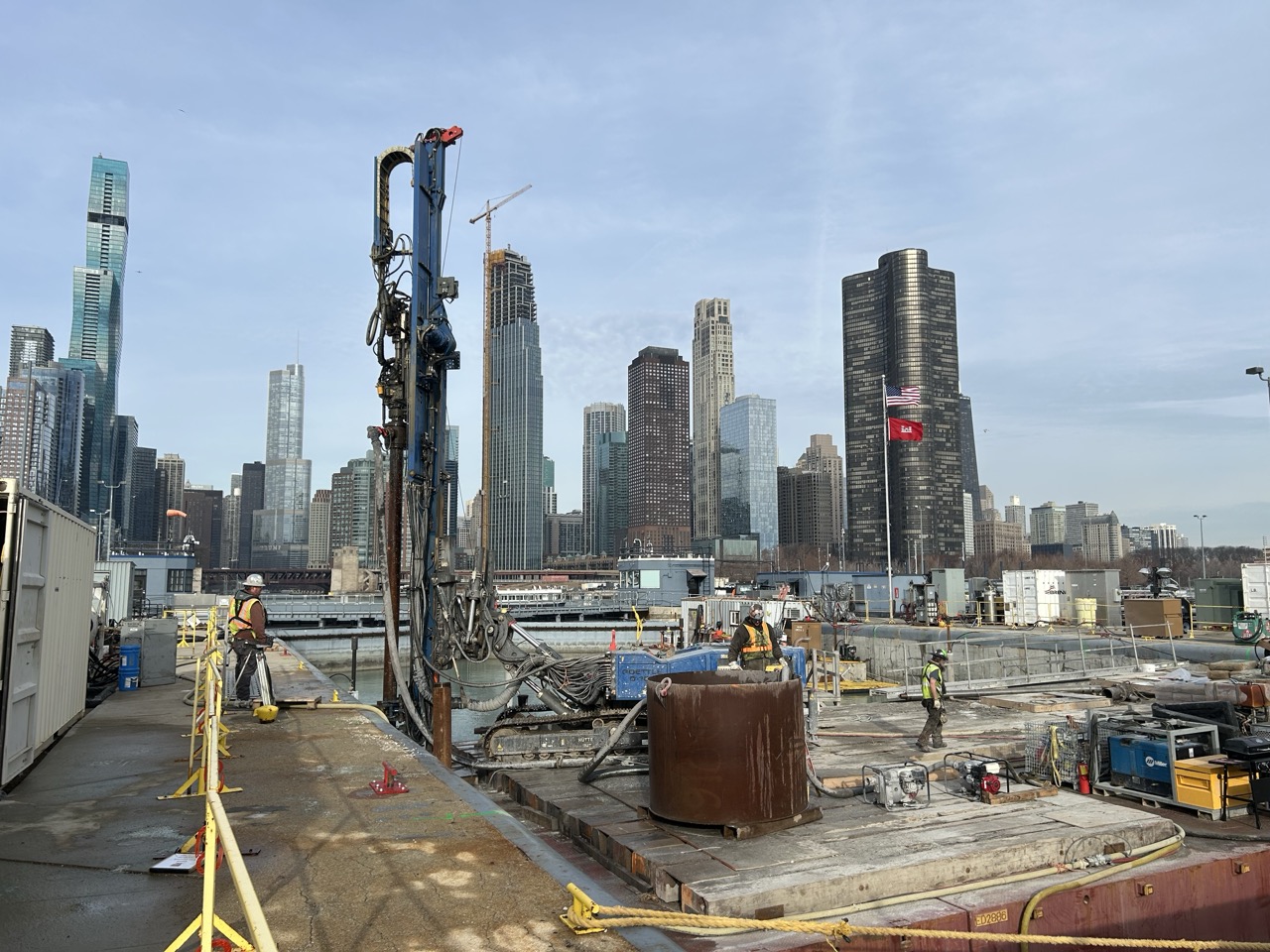

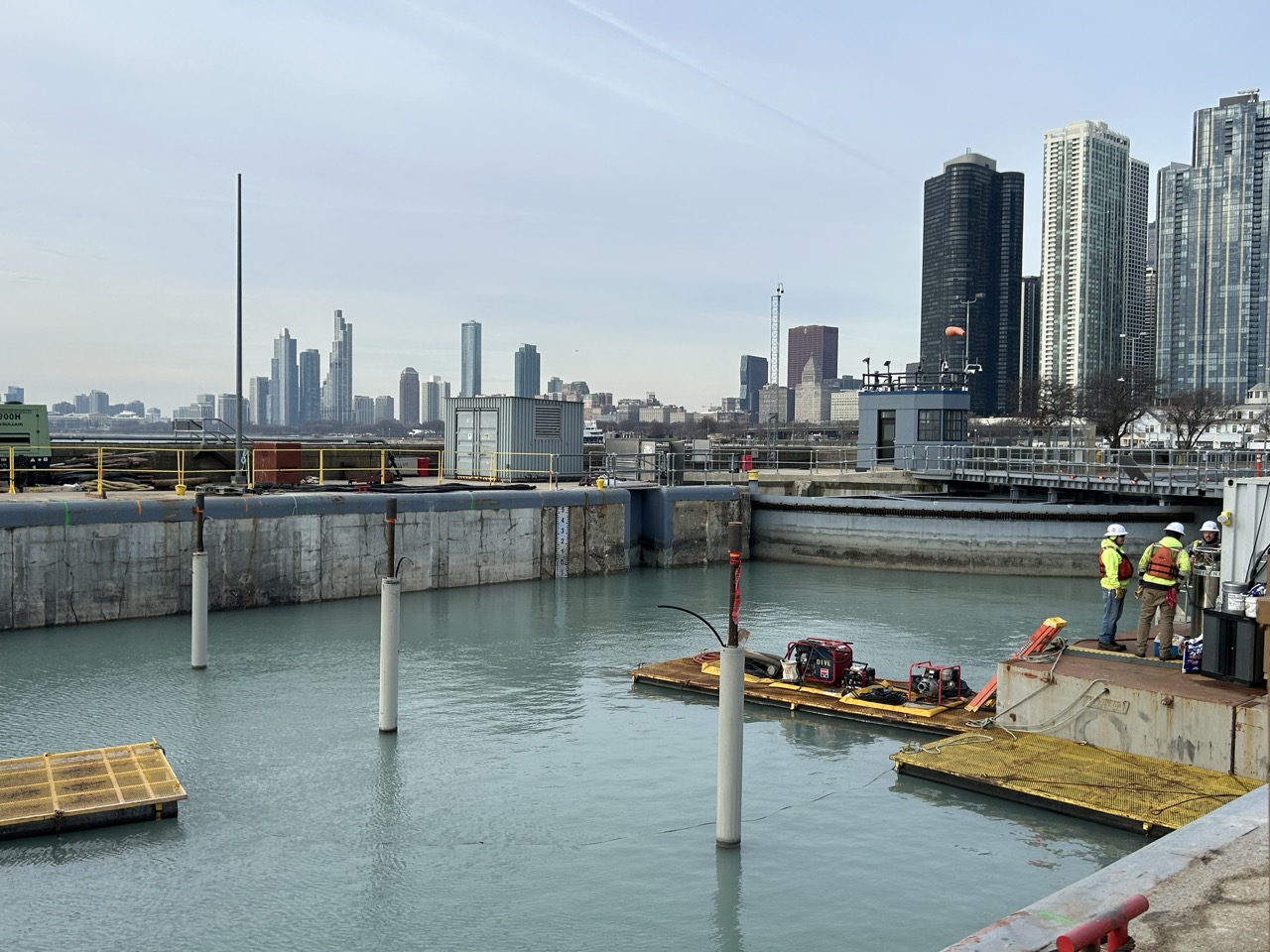

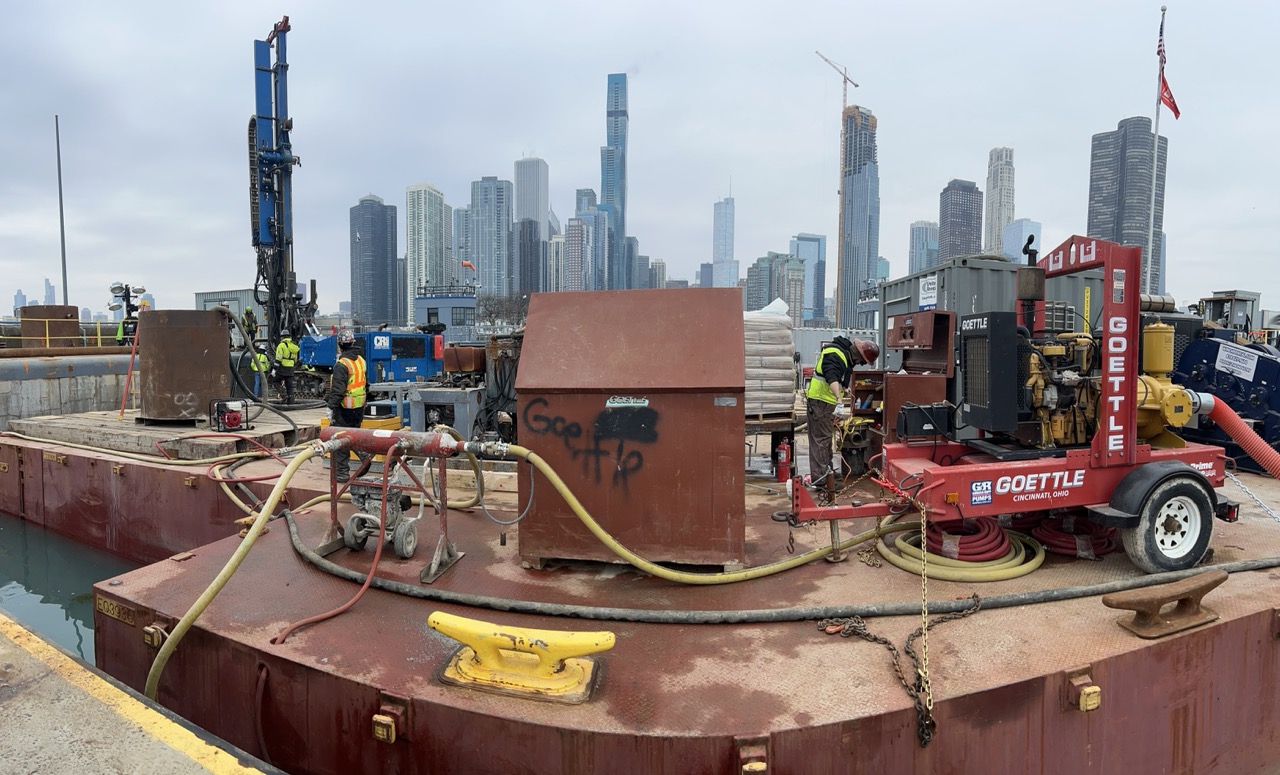

Furnish and install micropiles from a barge inside an existing lock. Micropiles were installed through 30ft of water, through the existing concrete slab floor down to rock, with an estimated 20ft rock socket into 26,000psi limestone.

Completed For

US Army Corps of Engineers CHICAGO DISTRICT
