Lower Olentangy Tunnel
Location
Columbus, OH
Project Facts
245 EA Secant Piles & 240 EA Pre-Excavation Grouting holes
50 EA - 1500mm Secant Piles at 107ft in length with 10ft rock sockets into 15,000psi Limestone
195 EA - 1180mm Secant Piles ranging from 31ft-100ft in length, 66 of which had 10ft rock sockets

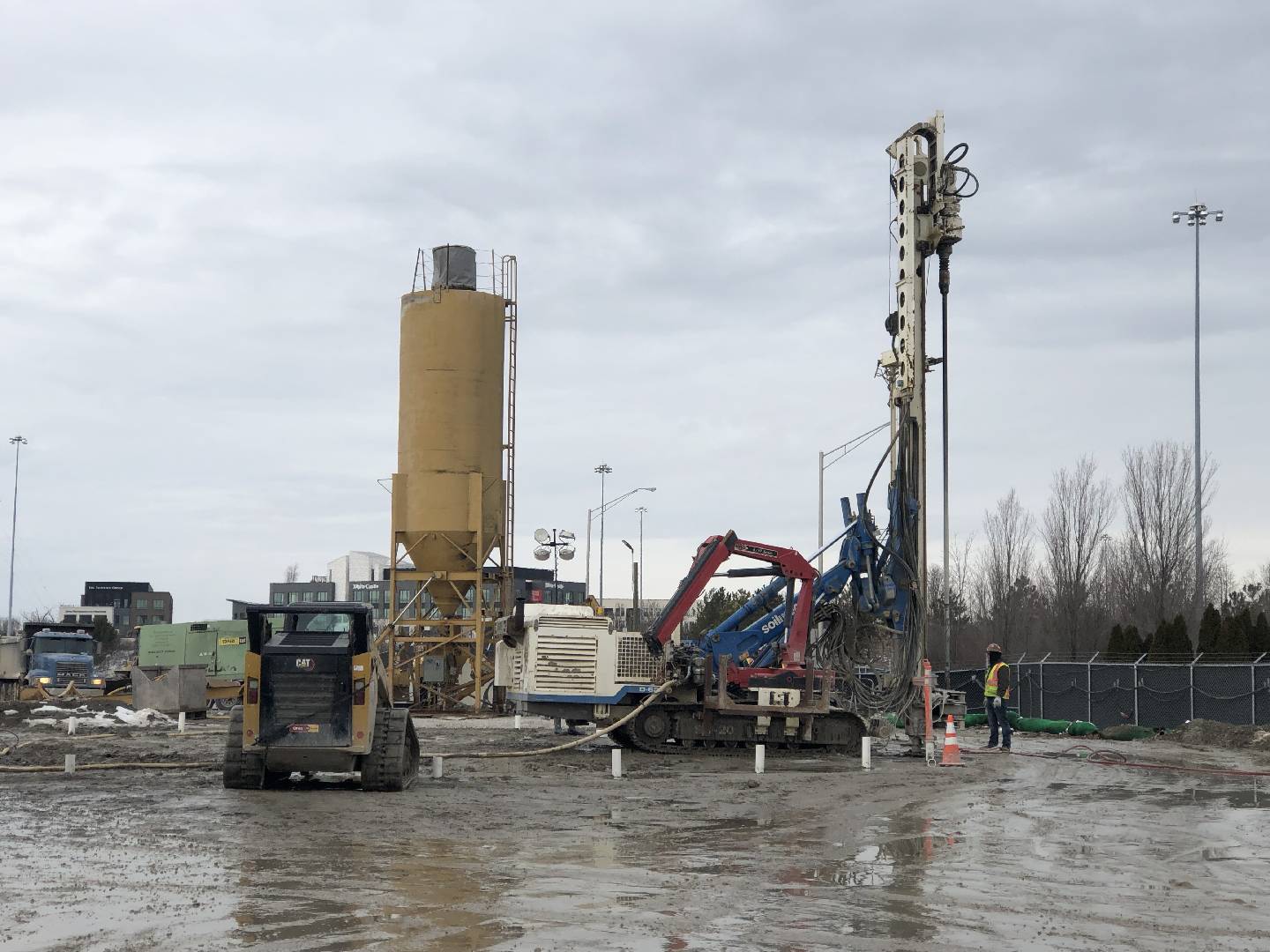

Over 32,000 LFT of Pre-Excavation Grouting holes ranging from 131ft -182ft in length, drilling in-rock ranged from 7.5ft to 75ft.
Project Scope

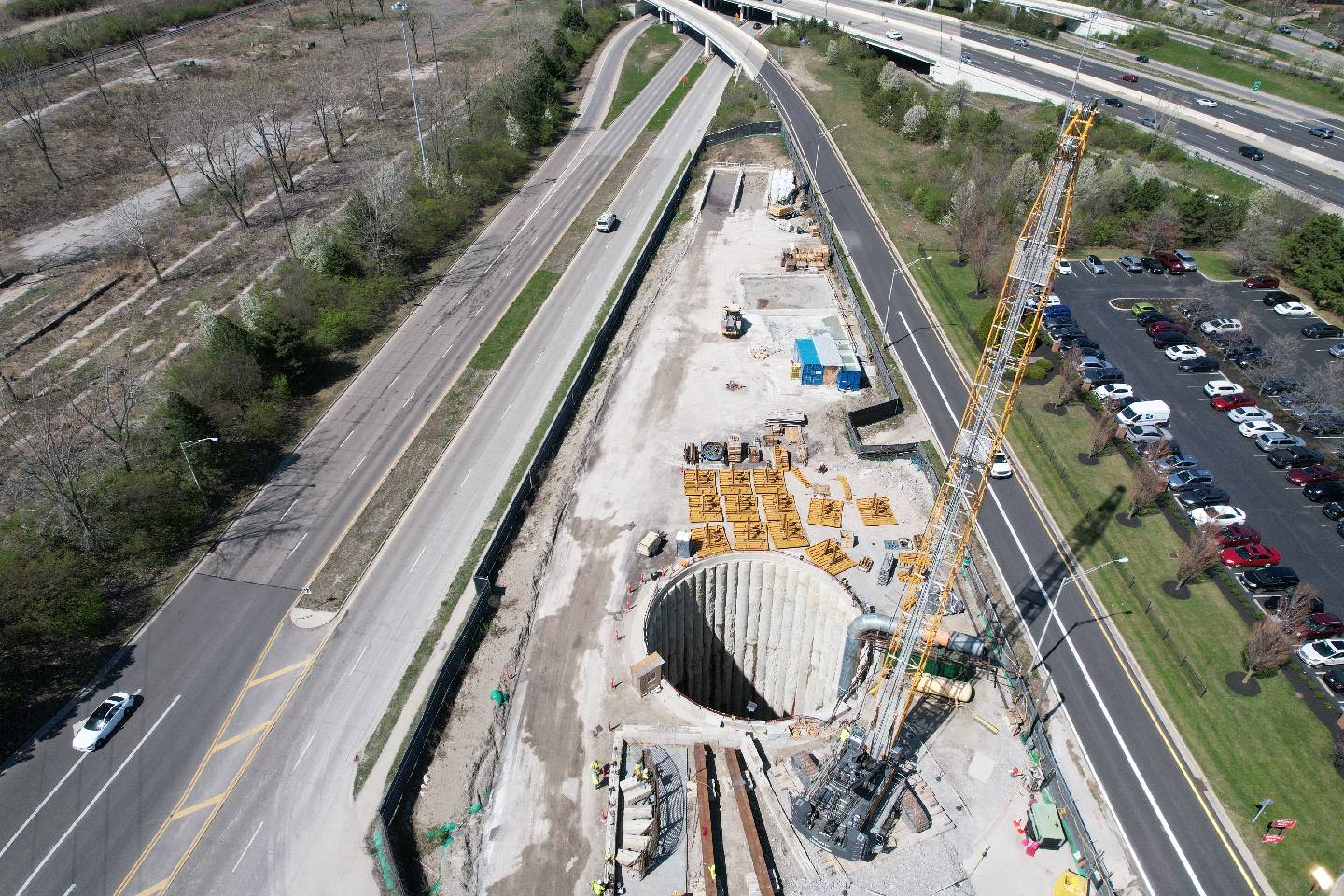

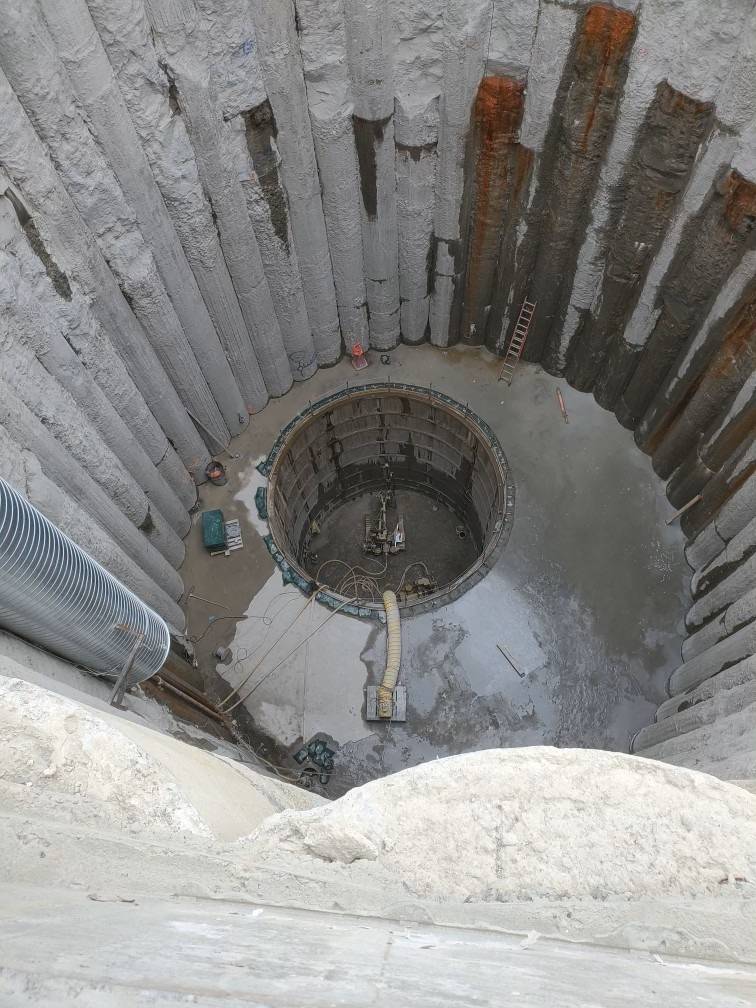

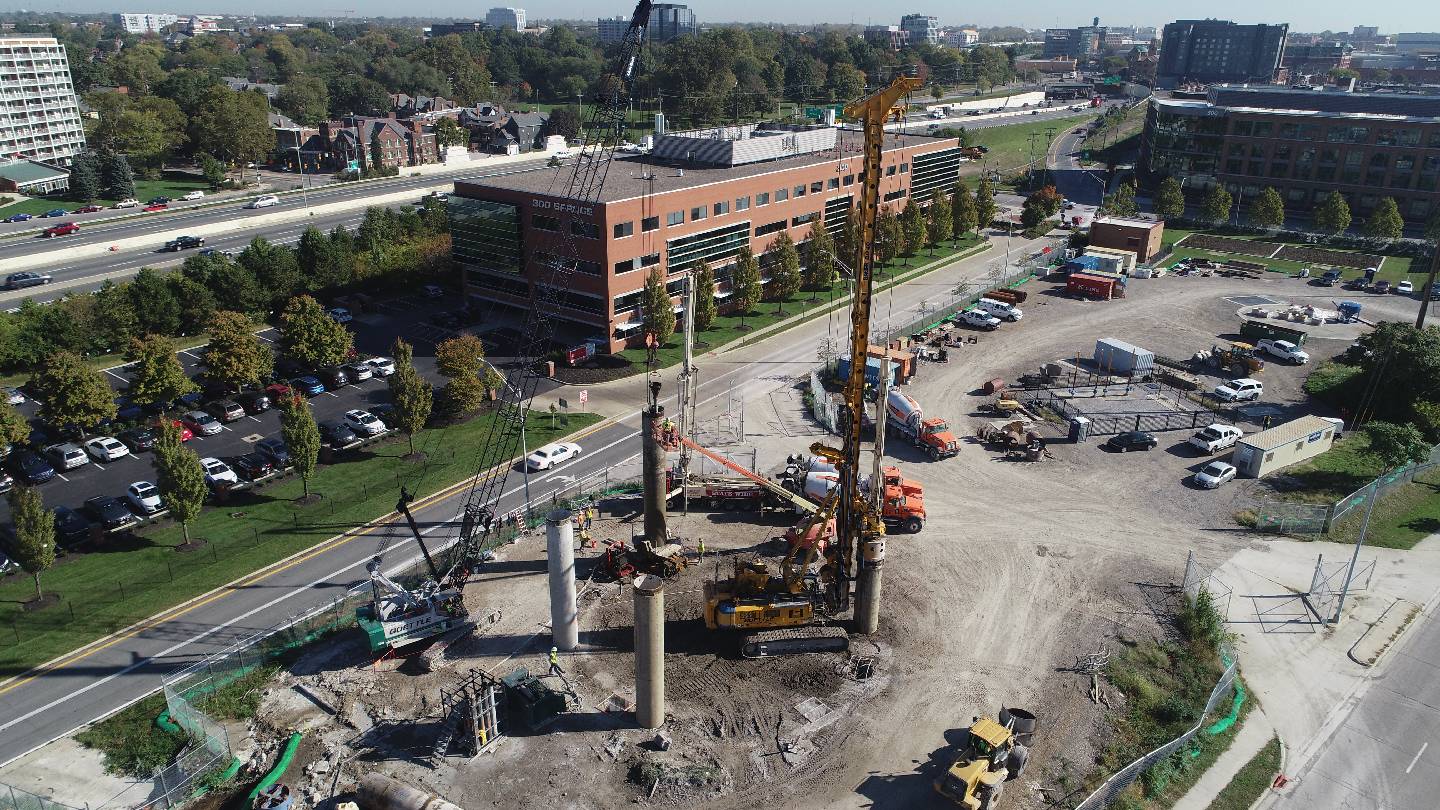

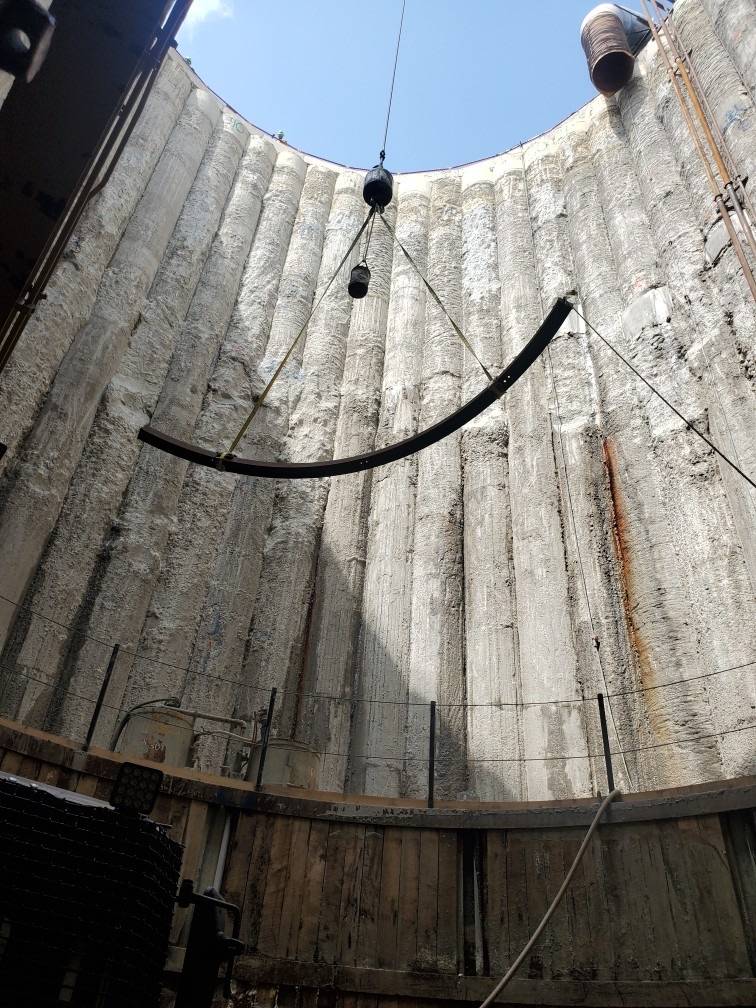

Installation of secant piles and pre-excavation grouting for 5 drop shafts, 3 diversion structures and 4 relief structures for a 3.5 mile long tunnel designed to prevent sewage from overflowing into the Olentangy and Scioto Rivers during heavy rains.
Completed For
The City of Columbus, OH
